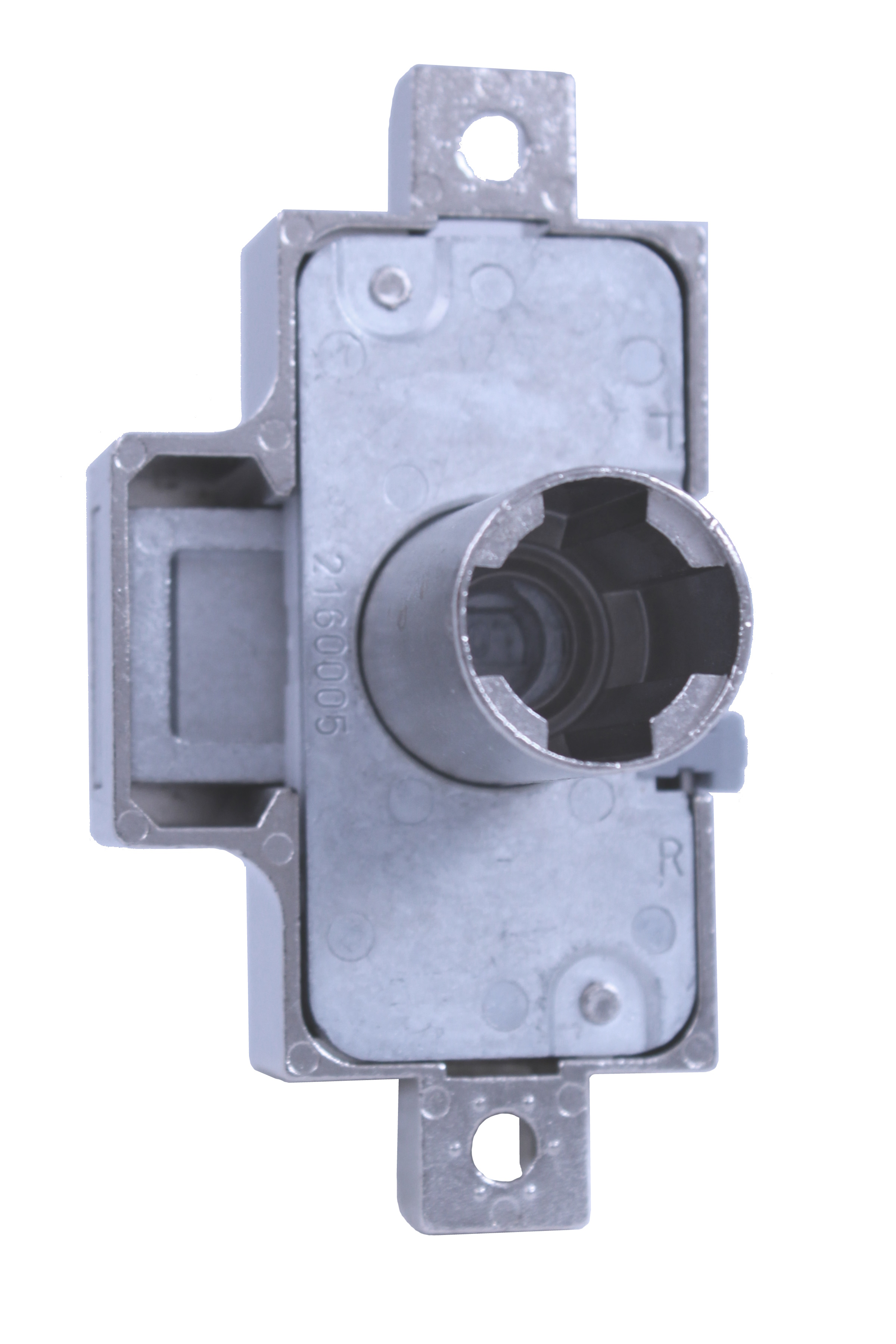

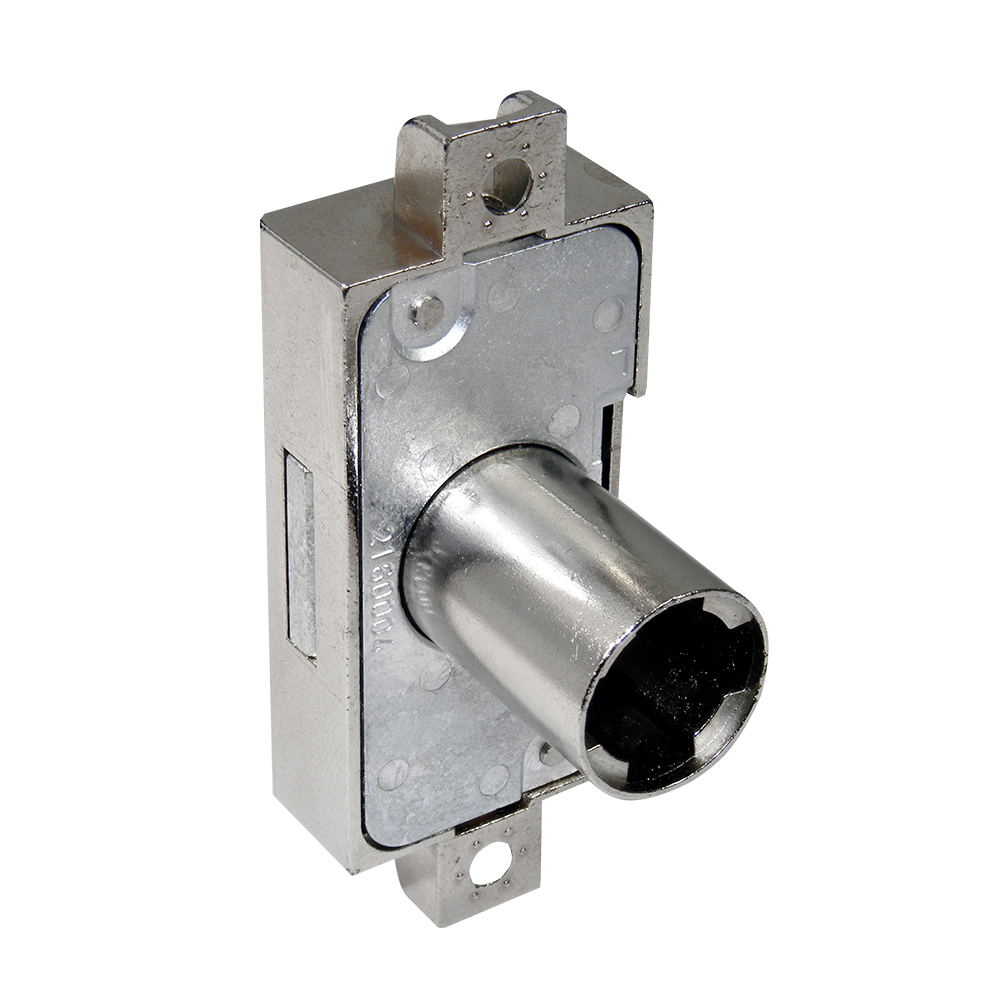

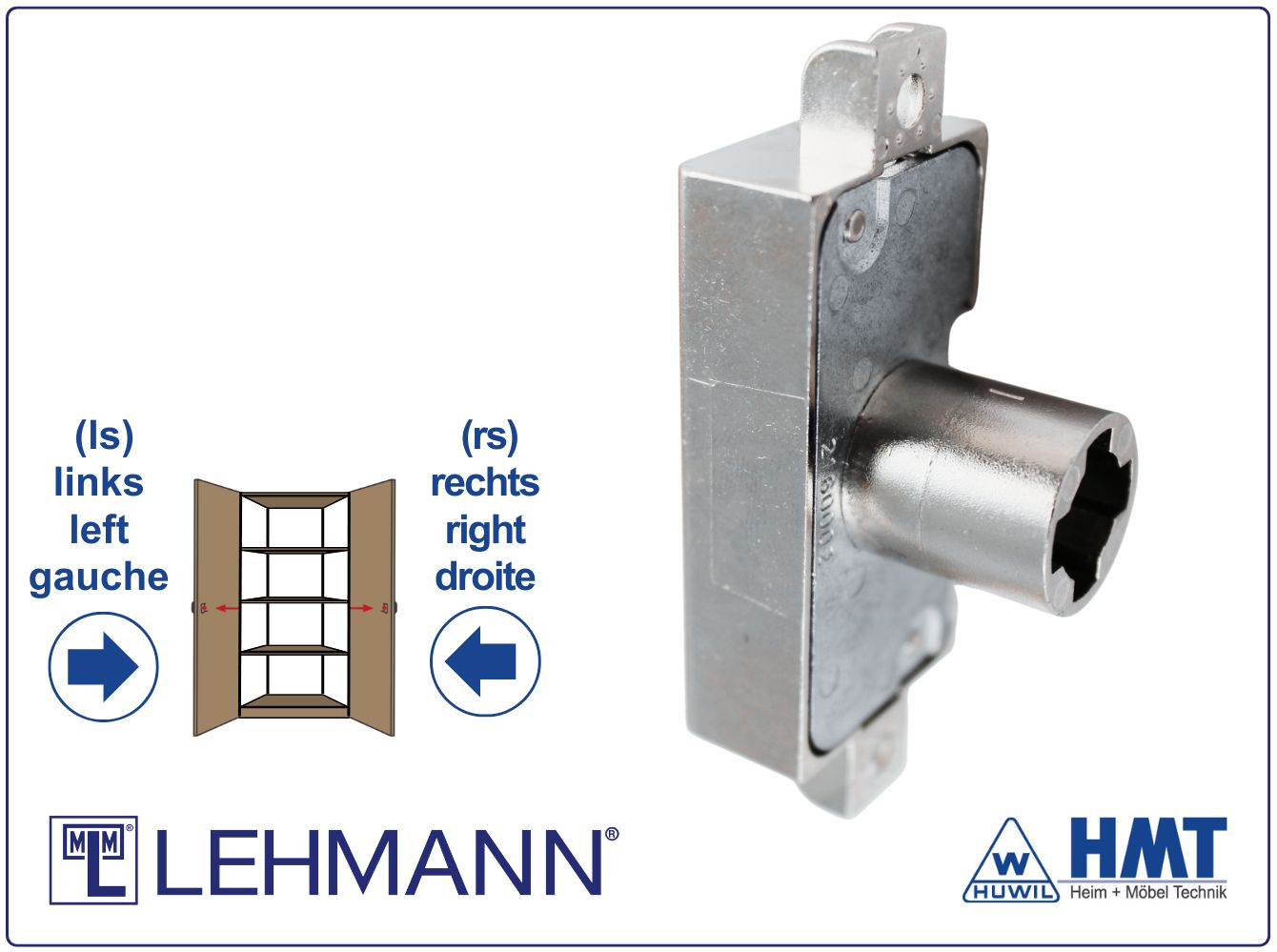

MLM LEHMANN Locking systems with added value - Made in GermanyMLM Espagnolette lock [6] Type 750 P2 - D15 (OM) / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock in the PRESTIGE 2 (P2) Ø18mm or PRESTIGE 4 (P4) Ø16.5mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. This espagnolette lock is available in various backsets within both locking systems P2 and P4.The backset describes the distance between the center of the keyhole (in this case, the center of the cylinder into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in the open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes from the lock case. In such cases, the backset is the distance from the center of the keyhole to the front edge of the cam when the lock is open. This applies to the MLM furniture lock type 750 with backsets 20mm (D20) and 30mm (D30) (see image showing all available backsets).The cylinder length [CL] is 20mm – additional cylinder lengths in the P2 system are 22mm [ZL22] and 26mm [ZL26].The MLM espagnolette lock type 750 P2 - D15 (OM) / rs + ls offered here is part of the PRESTIGE 2 (P2) Ø18mm locking system.Cylinder length 20mmBackset 15mm / without central locking (OM): no camAdjustable for right-hand / left-hand applications[6] Rod connection hole 6mm / for rods Ø6mmIncludes adjustable key-retaining function90° rotation angleNickel-platedRequired accessory to be ordered separately: cylinder core P2 Ø18mmAdditional accessories: escutcheon / locking hook / rod guide / stop pin / connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in Germany MLM Espagnolette lock [6] Type 750 P2 - D15 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock within the PRESTIGE 2 (P2) Ø18mm or PRESTIGE 4 (P4) Ø16.5mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. Within both locking systems (P2 and P4), this espagnolette lock is available in various backset dimensions.The backset is defined as the distance between the center of the keyhole (in this case, the center of the cylinder housing into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes. In such instances, the backset is measured as the distance from the center of the keyhole to the front edge of the cam in the open position. This applies to the MLM furniture lock type 750 for backsets 20mm (D20) and 30mm (D30) (see product image showing all available backset dimensions).The cylinder length [ZL] in this version is 20mm. Additional cylinder length options in the P2 system are 22mm [ZL22] and 26mm [ZL26].The MLM espagnolette lock type 750 P2 - D15 / rs + ls offered here is part of the PRESTIGE 2 (P2) Ø18mm locking system. Cylinder length: 20mm Backset: 15mm Adjustable for right-hand and left-hand applications [6] Rod connection hole 6 mm / for rods Ø6mm Includes adjustable key-retaining function 90° rotation angle Nickel-plated Required accessory (to be ordered separately): Cylinder core P2 Ø 18mm Additional accessories: Escutcheon / Locking hook / Rod guide / Stop pin / Connecting rod [6] in various lengths

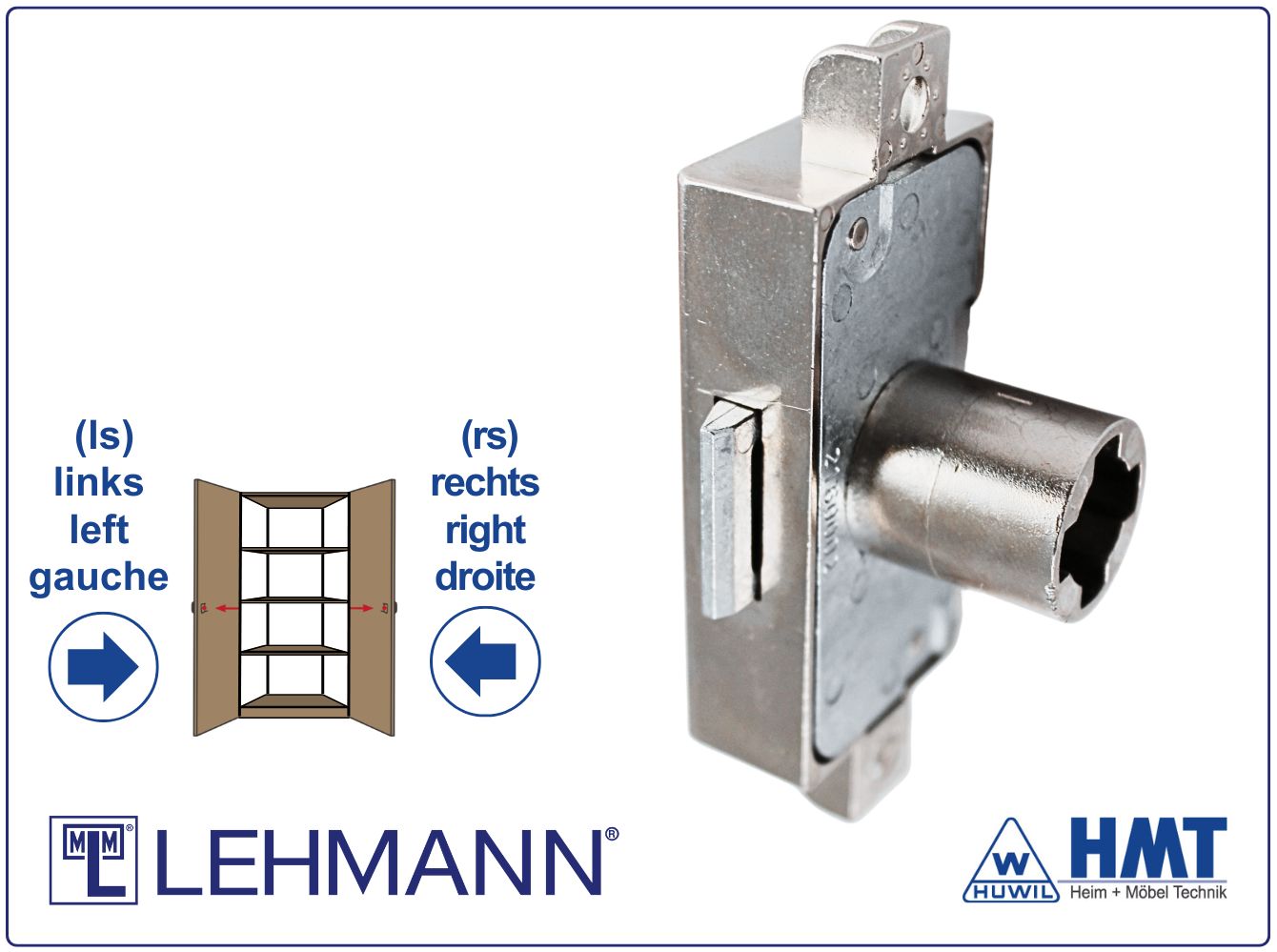

MLM LEHMANN Locking systems with added value - Made in Germany MLM Espagnolette lock [6] Type 750 P2 - D20 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock within the PRESTIGE 2 (P2) Ø18mm or PRESTIGE 4 (P4) Ø16.5mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. Within both locking systems (P2 and P4), this espagnolette lock is available in various backset dimensions.The backset is defined as the distance between the center of the keyhole (in this case, the center of the cylinder housing into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes. In such instances, the backset is measured as the distance from the center of the keyhole to the front edge of the cam in the open position. This applies to the MLM furniture lock type 750 for backsets 20mm (D20) and 30mm (D30) (see product image showing all available backset dimensions).The cylinder length [ZL] in this version is 20mm. Additional cylinder length options in the P2 system are 22mm [ZL22] and 26mm [ZL26].The MLM espagnolette lock type 750 P2 - D20 / rs + ls offered here is part of the PRESTIGE 2 (P2) Ø18mm locking system. Cylinder length: 20mm Backset: 20mm Adjustable for right-hand and left-hand applications [6] Rod connection hole 6 mm / for rods Ø6mm Includes adjustable key-retaining function 90° rotation angle Nickel-plated Required accessory (to be ordered separately): Cylinder core P2 Ø 18mm Additional accessories: Escutcheon / Locking hook / Rod guide / Stop pin / Connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in Germany MLM Espagnolette lock [6] Type 750 P2 - D25 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock within the PRESTIGE 2 (P2) Ø18mm or PRESTIGE 4 (P4) Ø16.5mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. Within both locking systems (P2 and P4), this espagnolette lock is available in various backset dimensions.The backset is defined as the distance between the center of the keyhole (in this case, the center of the cylinder housing into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes. In such instances, the backset is measured as the distance from the center of the keyhole to the front edge of the cam in the open position. This applies to the MLM furniture lock type 750 for backsets 20mm (D20) and 30mm (D30) (see product image showing all available backset dimensions).The cylinder length [ZL] in this version is 20mm. Additional cylinder length options in the P2 system are 22mm [ZL22] and 26mm [ZL26].The MLM espagnolette lock type 750 P2 - D25 / rs + ls offered here is part of the PRESTIGE 2 (P2) Ø18mm locking system. Cylinder length: 20mm Backset: 25mm Adjustable for right-hand and left-hand applications [6] Rod connection hole 6 mm / for rods Ø6mm Includes adjustable key-retaining function 90° rotation angle Nickel-plated Required accessory (to be ordered separately): Cylinder core P2 Ø 18mm Additional accessories: Escutcheon / Locking hook / Rod guide / Stop pin / Connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in Germany MLM Espagnolette lock [6] Type 750 P2 - D30 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock within the PRESTIGE 2 (P2) Ø18mm or PRESTIGE 4 (P4) Ø16.5mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. Within both locking systems (P2 and P4), this espagnolette lock is available in various backset dimensions.The backset is defined as the distance between the center of the keyhole (in this case, the center of the cylinder housing into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes. In such instances, the backset is measured as the distance from the center of the keyhole to the front edge of the cam in the open position. This applies to the MLM furniture lock type 750 for backsets 20mm (D20) and 30mm (D30) (see product image showing all available backset dimensions).The cylinder length [ZL] in this version is 20mm. Additional cylinder length options in the P2 system are 22mm [ZL22] and 26mm [ZL26].The MLM espagnolette lock type 750 P2 - D30 / rs + ls offered here is part of the PRESTIGE 2 (P2) Ø18mm locking system. Cylinder length: 20mm Backset: 30mm Adjustable for right-hand and left-hand applications [6] Rod connection hole 6 mm / for rods Ø6mm Includes adjustable key-retaining function 90° rotation angle Nickel-plated Required accessory (to be ordered separately): Cylinder core P2 Ø 18mm Additional accessories: Escutcheon / Locking hook / Rod guide / Stop pin / Connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in GermanyMLM LEHMANN Espagnolette Lock [6] Type 750 P2 - D25 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock in the PRESTIGE 2 (P2) Ø18mm or PRESTIGE 4 (P4) Ø16.5mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. This espagnolette lock is available in various backsets within both locking systems P2 and P4.The backset describes the distance between the center of the keyhole (in this case, the center of the cylinder into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in the open position.In some cases, the cam does not fully retract into the lock case when the lock is in the open position and instead protrudes from the lock case. In such cases, the backset is the distance from the center of the keyhole to the front edge of the cam when the lock is open. This applies to the MLM furniture lock type 750 with backsets 20mm (D20) and 30mm (D30) (see image showing all available backsets).The cylinder length [ZL] is 22mm – additional cylinder lengths in the P2 system are 20mm [ZL20] and 26mm [ZL26].The MLM espagnolette lock type 750 P2 - D25 / rs + ls offered here is part of the PRESTIGE 2 (P2) Ø18mm locking system.Cylinder length 22mmBackset 25mmAdjustable for right-hand / left-hand applications[6] Rod connection hole 6mm / for rods Ø6mmIncludes adjustable key-retaining function90° rotation angleNickel-platedRequired accessory to be ordered separately: cylinder core P2 Ø18mmAdditional accessories: escutcheon / locking hook / rod guide / stop pin / connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in GermanyMLM LEHMANN Espagnolette Lock [6] Type 750 P2 - D15 (OM) / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock in the PRESTIGE 2 (P2) Ø18mm or PRESTIGE 4 (P4) Ø16.5mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. This espagnolette lock is available in various backsets within both locking systems P2 and P4.The backset describes the distance between the center of the keyhole (in this case, the center of the cylinder into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in the open position.In some cases, the cam does not fully retract into the lock case when the lock is in the open position and instead protrudes from the lock case. In such cases, the backset is the distance from the center of the keyhole to the front edge of the cam when the lock is open. This applies to the MLM furniture lock type 750 with backsets 20mm (D20) and 30mm (D30) (see image showing all available backsets).The cylinder length [ZL] is 26mm – additional cylinder lengths in the P2 system are 20mm [ZL20] and 22mm [ZL22].The MLM espagnolette lock type 750 P2 - D15 (OM) / rs + ls offered here is part of the PRESTIGE 2 (P2) Ø18mm locking system.Cylinder length 26mmBackset 15mm / without central locking (OM): no camAdjustable for right-hand / left-hand applications[6] Rod connection hole 6mm / for rods Ø6mmIncludes adjustable key-retaining function90° rotation angleNickel-platedRequired accessory to be ordered separately: cylinder core P2 Ø18mmAdditional accessories: escutcheon / locking hook / rod guide / stop pin / connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in GermanyMLM LEHMANN Espagnolette Lock [6] Type 750 P2 - D25 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock in the PRESTIGE 2 (P2) Ø18mm or PRESTIGE 4 (P4) Ø16.5mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. This espagnolette lock is available in various backsets within both locking systems P2 and P4.The backset describes the distance between the center of the keyhole (in this case, the center of the cylinder into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in the open position.In some cases, the cam does not fully retract into the lock case when the lock is in the open position and instead protrudes from the lock case. In such cases, the backset is the distance from the center of the keyhole to the front edge of the cam when the lock is open. This applies to the MLM furniture lock type 750 with backsets 20mm (D20) and 30mm (D30) (see image showing all available backsets).The cylinder length [ZL] is 26mm – additional cylinder lengths in the P2 system are 20mm [ZL20] and 22mm [ZL22].The MLM espagnolette lock type 750 P2 - D25 / rs + ls offered here is part of the PRESTIGE 2 (P2) Ø18mm locking system.Cylinder length 26mmBackset 25mmAdjustable for right-hand / left-hand applications[6] Rod connection hole 6mm / for rods Ø6mmIncludes adjustable key-retaining function90° rotation angleNickel-platedRequired accessory to be ordered separately: cylinder core P2 Ø18mmAdditional accessories: escutcheon / locking hook / rod guide / stop pin / connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in GermanyMLM LEHMANN Espagnolette Lock [6] Type 750 P4 - D15 (OM) / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 4 (P4) Ø16.5mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock in the PRESTIGE 4 (P4) Ø16.5mm or PRESTIGE 2 (P2) Ø18mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. This espagnolette lock is available in various backsets within both locking systems P4 and P2.The backset describes the distance between the center of the keyhole (in this case, the center of the cylinder into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in the open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes from the lock case. In such cases, the backset is the distance from the center of the keyhole to the front edge of the cam when the lock is open. This applies to the MLM furniture lock type 750 with backsets 20mm (D20) and 30mm (D30) (see image showing all available backsets). The cylinder length [ZL] is 20mm – additional cylinder lengths in the P4 system are 26mm [ZL26] and 32mm [ZL32].The MLM espagnolette lock type 750 P4 - D15 (OM) / rs + ls offered here is part of the PRESTIGE 4 (P4) Ø16.5mm locking system.Cylinder length 20mmBackset 15mm / without central locking (OM): no camAdjustable for right-hand / left-hand applications[6] Rod connection hole 6mm / for rods Ø6mmIncludes adjustable key-retaining function90° rotation angleNickel-platedRequired accessory to be ordered separately: cylinder core P4 Ø16.5mmAdditional accessories: escutcheon / locking hook / rod guide / stop pin / connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in Germany MLM Espagnolette lock [6] Type 750 P4 - D15 / rs + lsMLM LEHMANN Cylinder Locks PRESTIGE 4 (P4) Ø16.5 mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock within the PRESTIGE 4 (P4) Ø16.5mm or PRESTIGE 2 (P2) Ø18mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. Within both locking systems (P4 and P2), this espagnolette lock is available in various backset dimensions.The backset is defined as the distance between the center of the keyhole (in this case, the center of the cylinder housing into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes. In such instances, the backset is measured as the distance from the center of the keyhole to the front edge of the cam in the open position. This applies to the MLM furniture lock type 750 for backsets 20mm (D20) and 30mm (D30) (see product image showing all available backset dimensions).The cylinder length [ZL] in this version is 20mm. Additional cylinder length options in the P4 system are 26mm [ZL26] and 32mm [ZL32].The MLM espagnolette lock type 750 P4 - D15 / rs + ls offered here is part of the PRESTIGE 4 (P4) Ø16.5mm locking system. Cylinder length: 20mm Backset: 15mm Adjustable for right-hand and left-hand applications [6] Rod connection hole 6 mm / for rods Ø6mm Includes adjustable key-retaining function 90° rotation angle Nickel-plated Required accessory (to be ordered separately): Cylinder core P4 Ø16.5mm Additional accessories: Escutcheon / Locking hook / Rod guide / Stop pin / Connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in Germany MLM Espagnolette lock [6] Type 750 P4 - D20 / rs + lsMLM LEHMANN Cylinder Locks PRESTIGE 4 (P4) Ø16.5 mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock within the PRESTIGE 4 (P4) Ø16.5mm or PRESTIGE 2 (P2) Ø18mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. Within both locking systems (P4 and P2), this espagnolette lock is available in various backset dimensions.The backset is defined as the distance between the center of the keyhole (in this case, the center of the cylinder housing into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes. In such instances, the backset is measured as the distance from the center of the keyhole to the front edge of the cam in the open position. This applies to the MLM furniture lock type 750 for backsets 20mm (D20) and 30mm (D30) (see product image showing all available backset dimensions).The cylinder length [ZL] in this version is 20mm. Additional cylinder length options in the P4 system are 26mm [ZL26] and 32mm [ZL32].The MLM espagnolette lock type 750 P4 - D30 / rs + ls offered here is part of the PRESTIGE 4 (P4) Ø16.5mm locking system. Cylinder length: 20mm Backset: 20mm Adjustable for right-hand and left-hand applications [6] Rod connection hole 6 mm / for rods Ø6mm Includes adjustable key-retaining function 90° rotation angle Nickel-plated Required accessory (to be ordered separately): Cylinder core P4 Ø16.5mm Additional accessories: Escutcheon / Locking hook / Rod guide / Stop pin / Connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in Germany MLM Espagnolette lock [6] Type 750 P4 - D25 / rs + lsMLM LEHMANN Cylinder Locks PRESTIGE 4 (P4) Ø16.5 mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock within the PRESTIGE 4 (P4) Ø16.5mm or PRESTIGE 2 (P2) Ø18mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. Within both locking systems (P4 and P2), this espagnolette lock is available in various backset dimensions.The backset is defined as the distance between the center of the keyhole (in this case, the center of the cylinder housing into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in open position.In some cases, the cam does not fully retract into the lock case when open and instead protrudes. In such instances, the backset is measured as the distance from the center of the keyhole to the front edge of the cam in the open position. This applies to the MLM furniture lock type 750 for backsets 20mm (D20) and 30mm (D30) (see product image showing all available backset dimensions).The cylinder length [ZL] in this version is 20mm. Additional cylinder length options in the P4 system are 26mm [ZL26] and 32mm [ZL32].The MLM espagnolette lock type 750 P4 - D30 / rs + ls offered here is part of the PRESTIGE 4 (P4) Ø16.5mm locking system. Cylinder length: 20mm Backset: 25mm Adjustable for right-hand and left-hand applications [6] Rod connection hole 6 mm / for rods Ø6mm Includes adjustable key-retaining function 90° rotation angle Nickel-plated Required accessory (to be ordered separately): Cylinder core P4 Ø16.5mm Additional accessories: Escutcheon / Locking hook / Rod guide / Stop pin / Connecting rod [6] in various lengths

MLM LEHMANN Locking systems with added value - Made in GermanyMLM LEHMANN Espagnolette Lock [6] Type 750 P4 - D30 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 4 (P4) Ø16.5mmThe MLM LEHMANN espagnolette lock type 750 is available as a furniture lock in the PRESTIGE 4 (P4) Ø16.5mm or PRESTIGE 2 (P2) Ø18mm locking systems. It is a nickel-plated, surface-mounted furniture lock featuring an adjustable key-retaining function and can be configured for right-hand or left-hand applications depending on the cabinet door. This espagnolette lock is available in various backsets within both locking systems P4 and P2.The backset describes the distance between the center of the keyhole (in this case, the center of the cylinder into which the cylinder core is inserted) and the front edge of the lock (faceplate) when the furniture lock is in the open position.In some cases, the cam does not fully retract into the lock case when the lock is in the open position and instead protrudes from the lock case. In such cases, the backset is the distance from the center of the keyhole to the front edge of the cam when the lock is open. This applies to the MLM furniture lock type 750 with backsets 20mm (D20) and 30mm (D30) (see image showing all available backsets).The cylinder length [ZL] is 20mm – additional cylinder lengths in the P4 system are 26mm [ZL26] and 32mm [ZL32].The MLM espagnolette lock type 750 P4 - D30 / rs + ls offered here is part of the PRESTIGE 4 (P4) Ø16.5mm locking system.Cylinder length 20mmBackset 30mmAdjustable for right-hand / left-hand applications[6] Rod connection hole 6mm / for rods Ø6mmIncludes adjustable key-retaining function90° rotation angleNickel-platedRequired accessory to be ordered separately: cylinder core P4 Ø16.5mmAdditional accessories: escutcheon / locking hook / rod guide / stop pin / connecting rod [6] in various lengths
