HEKNA LOCK [6] Type 331 [W1] - D25 / rs / GL

HEKNA – Manufacturer of cylinder locks and locking systems for furniture

---

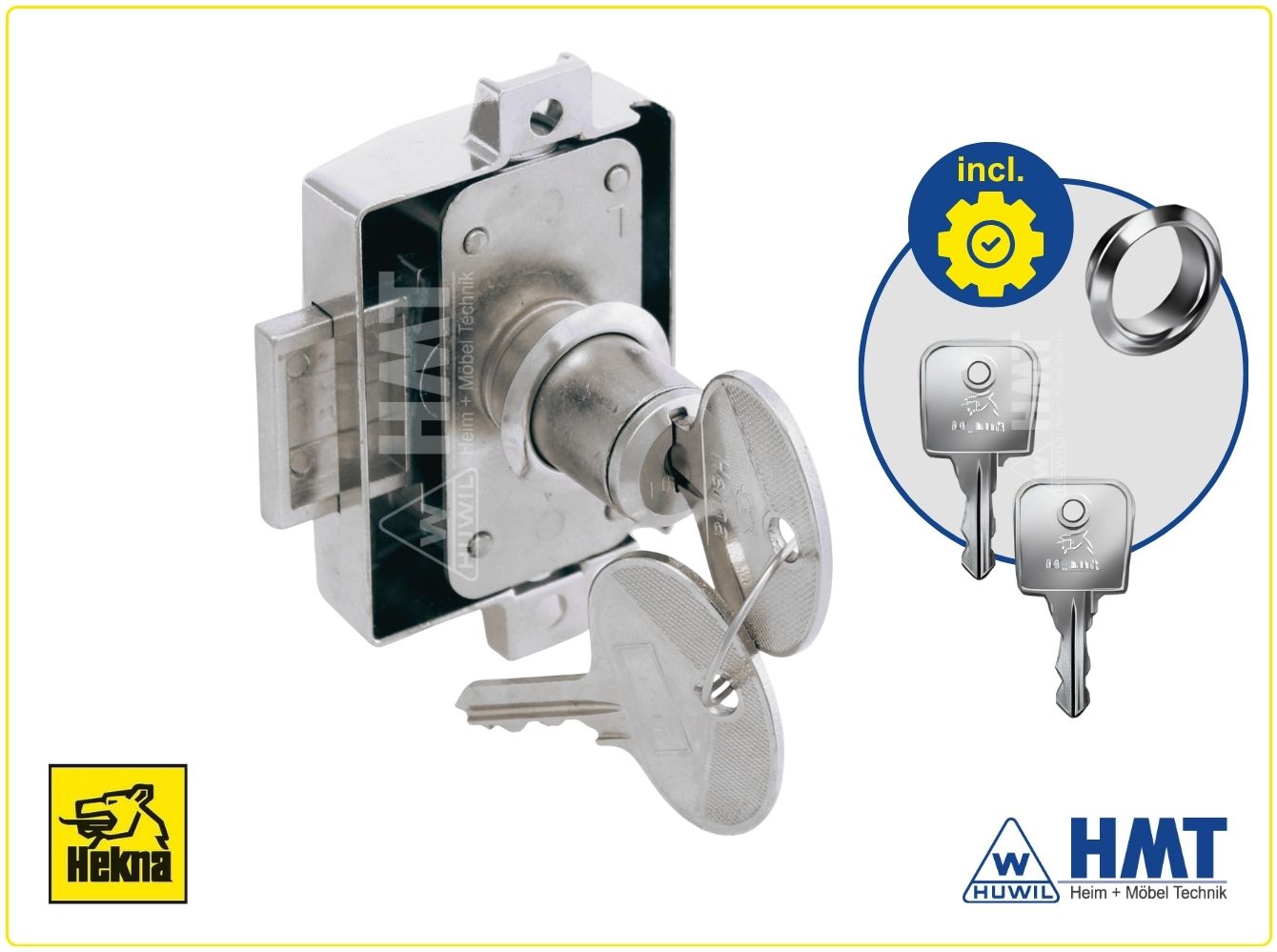

HEKNA Espagnolette lock [6] 3060 Ultra Type 331 [W1] - D25 / rs / GL

[6]: for bars Ø 6mm
[W1]: Espagnolette lock with mounted cylinder core / cylinder Ø16,5mm diameter & 21mm length

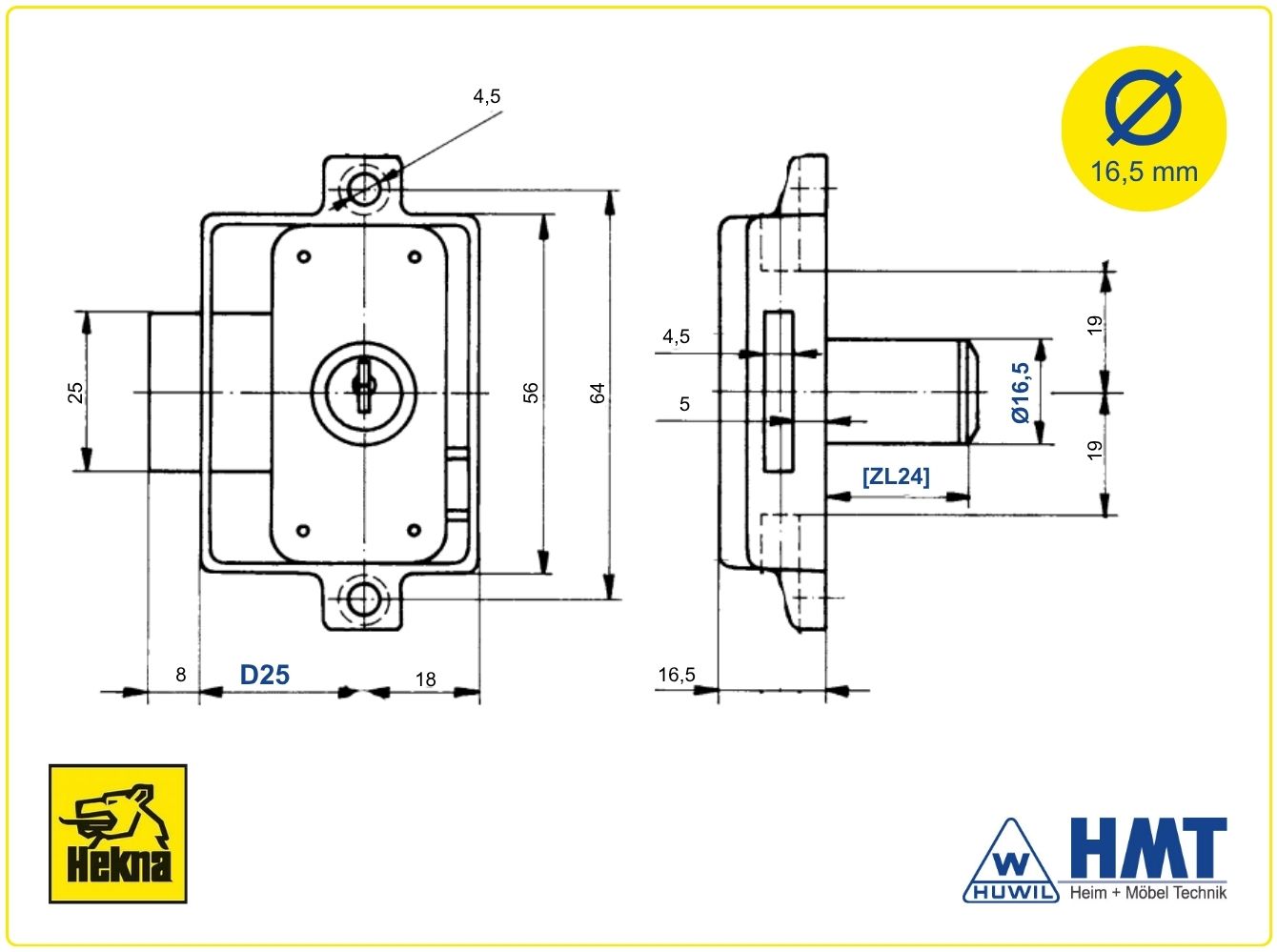

D25: The backset of this furniture lock is 25mm (D25). The backset is the distance from the center of the keyhole to the front edge of the lock (forend) – or to the front edge of the cam when the furniture lock is in the unlocked position.

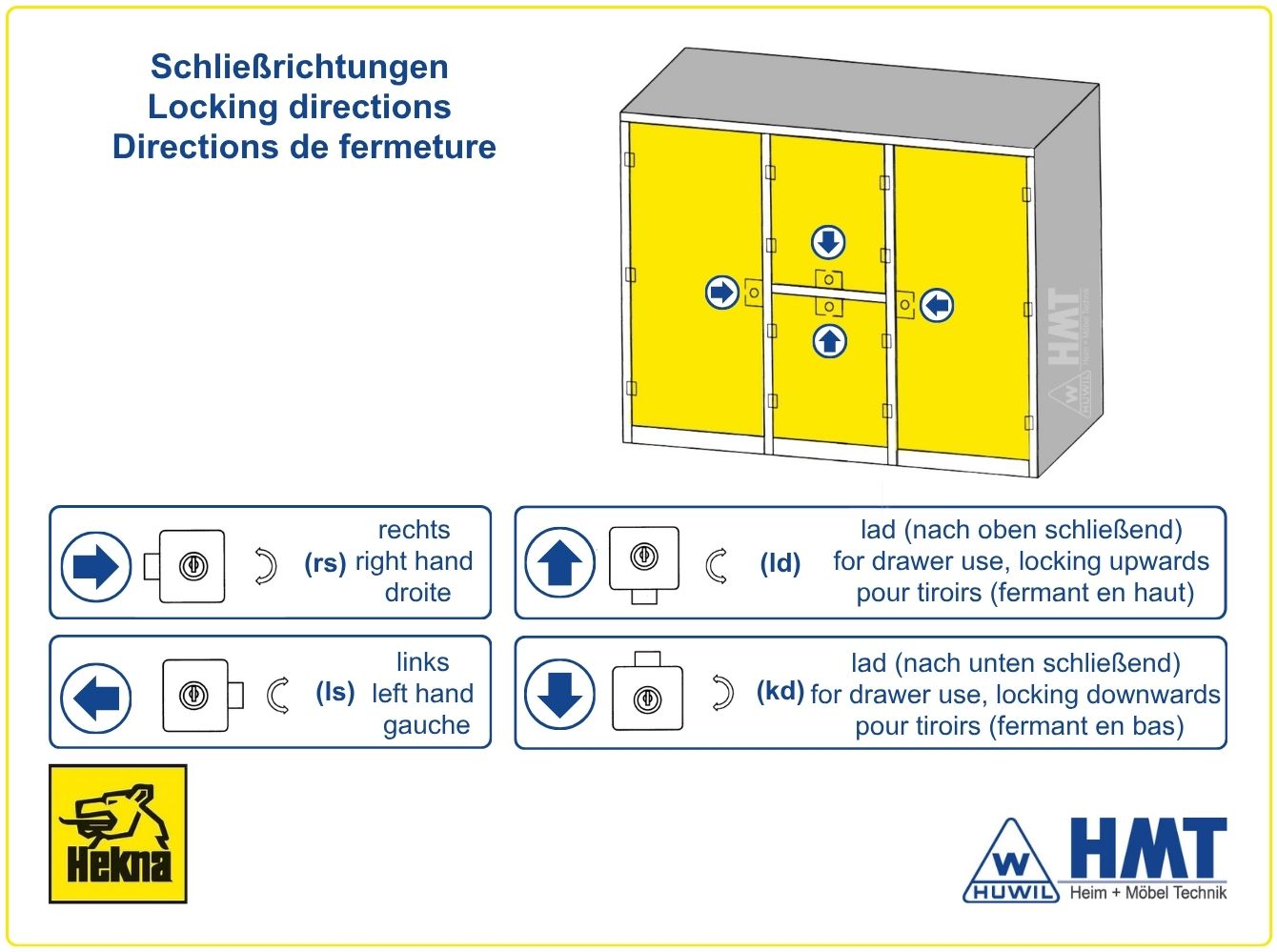

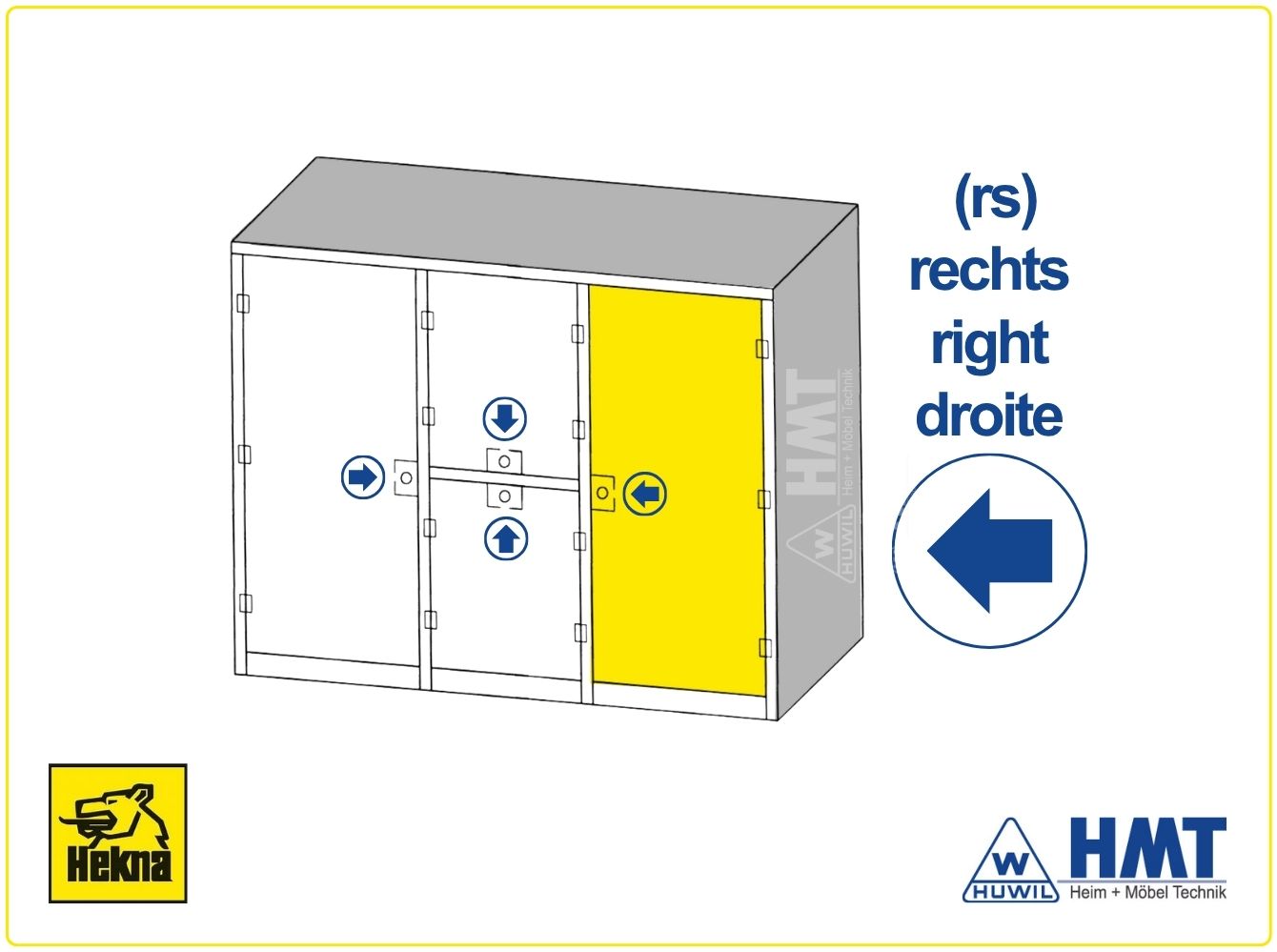

rs: This furniture lock is designed for right-hand (rs) applications. The hinges are located on the right-hand side; the door opens to the right.

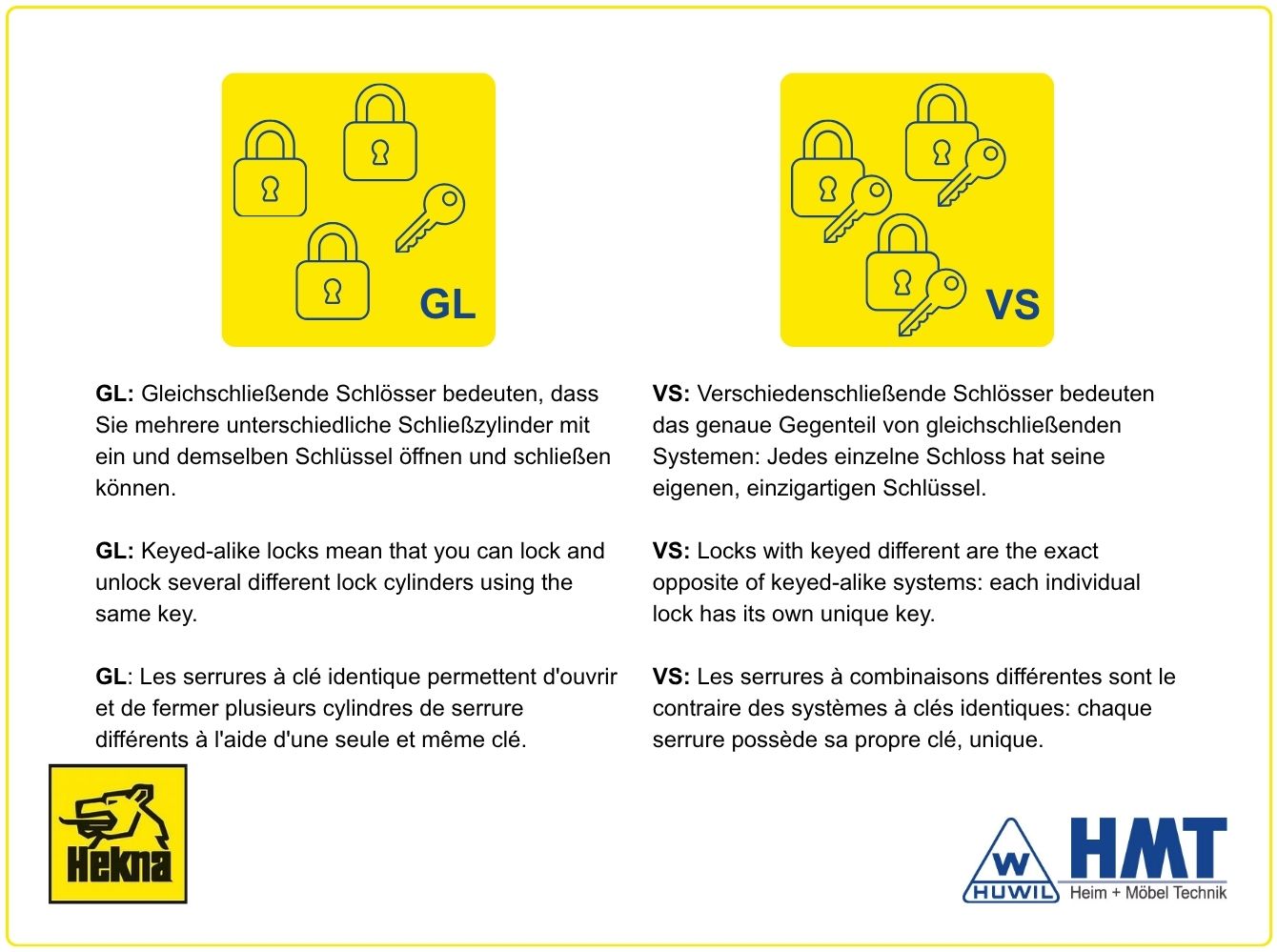

GL: This lock has a specific key code within the corresponding keying system. If you order several locks of this type, the key code number (visible on the cylinder core and the cylinder key) will always be identical.
