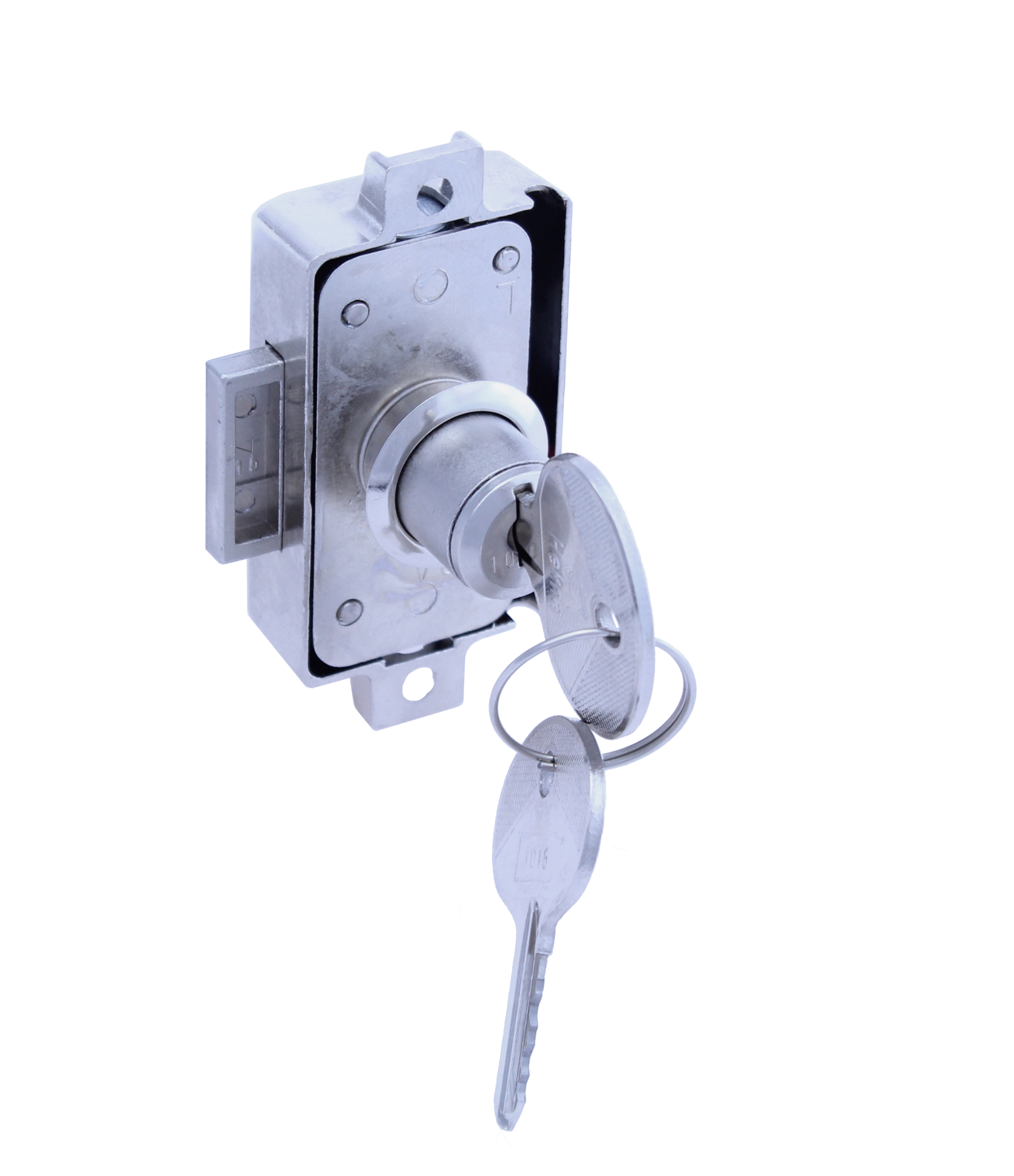

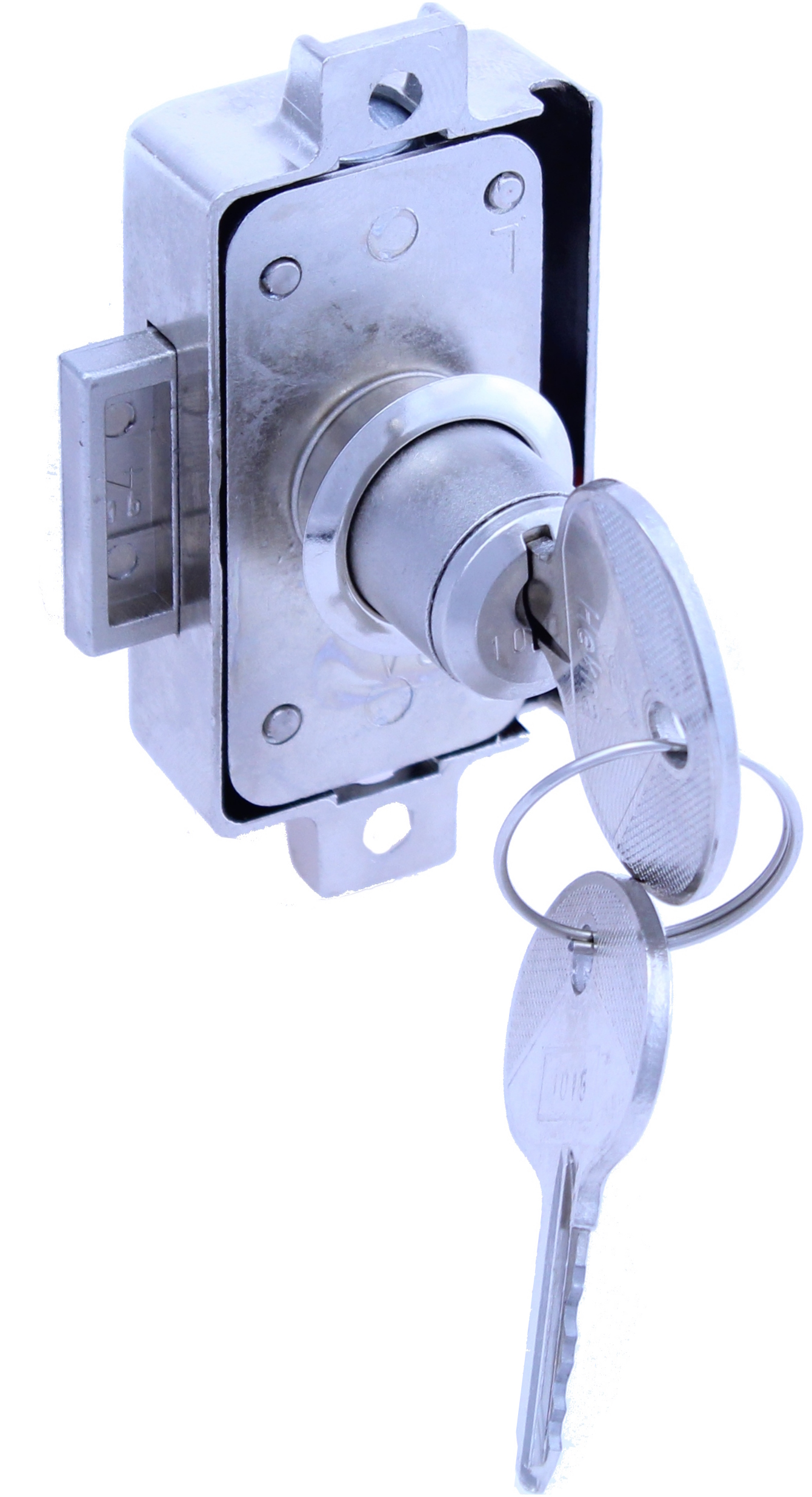

HEKNA LOCK [6] 3060 Ultra Type 331 [W0] - D15 / rs / VS
HEKNA LOCK [6] 3060 Ultra Type 331 [W0] - D15 / rs / VS
| BRAND: | HEKNA |
|---|---|
| KEYING GROUP: | [SK: K-10] HEKNA / Schließungen 1001 bis 1425 / (GL) 1060 |
| [MS-926] ZYLINDER-MASSE: | Zylinderlänge 21mm , Ø 16,5 mm |
| PRODUCT GROUP: | Espagnolette lock for cylinder |
| LOCK TYPE: | Hekna Typ 331 |
| BACKSET: | (D15) 15 mm |
| LOCKING DIRECTION: | (rs) right |
| KEYING: | (VS) keyed different |
| ACCESSORIES: | 1 rosette , 2 steel keys |
| CYLINDER CORE: | with mounted cylinder core |
| FUNCTION: | 3-Punkt-Verriegelung durch die Stangen oben und unten |
| HOLE FOR ROD HOLE: | [6] for 6 mm bar |
| MOUNTING TYPE: | for screwing |
| FINISH: | nickel plated |
