HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS
![HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS](https://www.huwil.de/media/86/74/3b/1788426063/12.0331.HVR.1625_1.jpg?ts=1788426063 "HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS")
![HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS](https://www.huwil.de/media/a4/00/e6/1788426064/12.0331.HVR.1625_2.jpg?ts=1788426064 "HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS")
![HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS](https://www.huwil.de/media/b6/de/27/1788426063/12.0331.HVR.1625_3.jpg?ts=1788426063 "HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS")
![HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS](https://www.huwil.de/media/33/0a/d3/1788426063/12.0331.HVR.1625_4.jpg?ts=1788426063 "HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS")
![HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS](https://www.huwil.de/media/e3/4d/61/1788445284/12.0331.HVR.1625_5.jpg?ts=1788445284 "HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS")
![HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS](https://www.huwil.de/media/43/45/d8/1788426062/12.0331.HVR.1625_6.jpg?ts=1788426062 "HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS")
![HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS](https://www.huwil.de/media/b9/ab/c5/1788426062/12.0331.HVR.1625_7.jpg?ts=1788426062 "HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS")
![HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS](https://www.huwil.de/media/a8/77/3d/1788426062/12.0331.HVR.1625_8.jpg?ts=1788426062 "HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS")
€33.09
HEKNA LOCK [6] Type 331 [W0] - D25 / rs / VS
HEKNA – Manufacturer of cylinder locks and locking systems for furniture
HEKNA Espagnolette lock [6] 3060 Ultra Type 331 [W0] - D25 / rs / VS
[6]: for bars Ø 6mm
[W0]: Espagnolette lock with mounted cylinder core / cylinder Ø16,5mm diameter & 21mm length

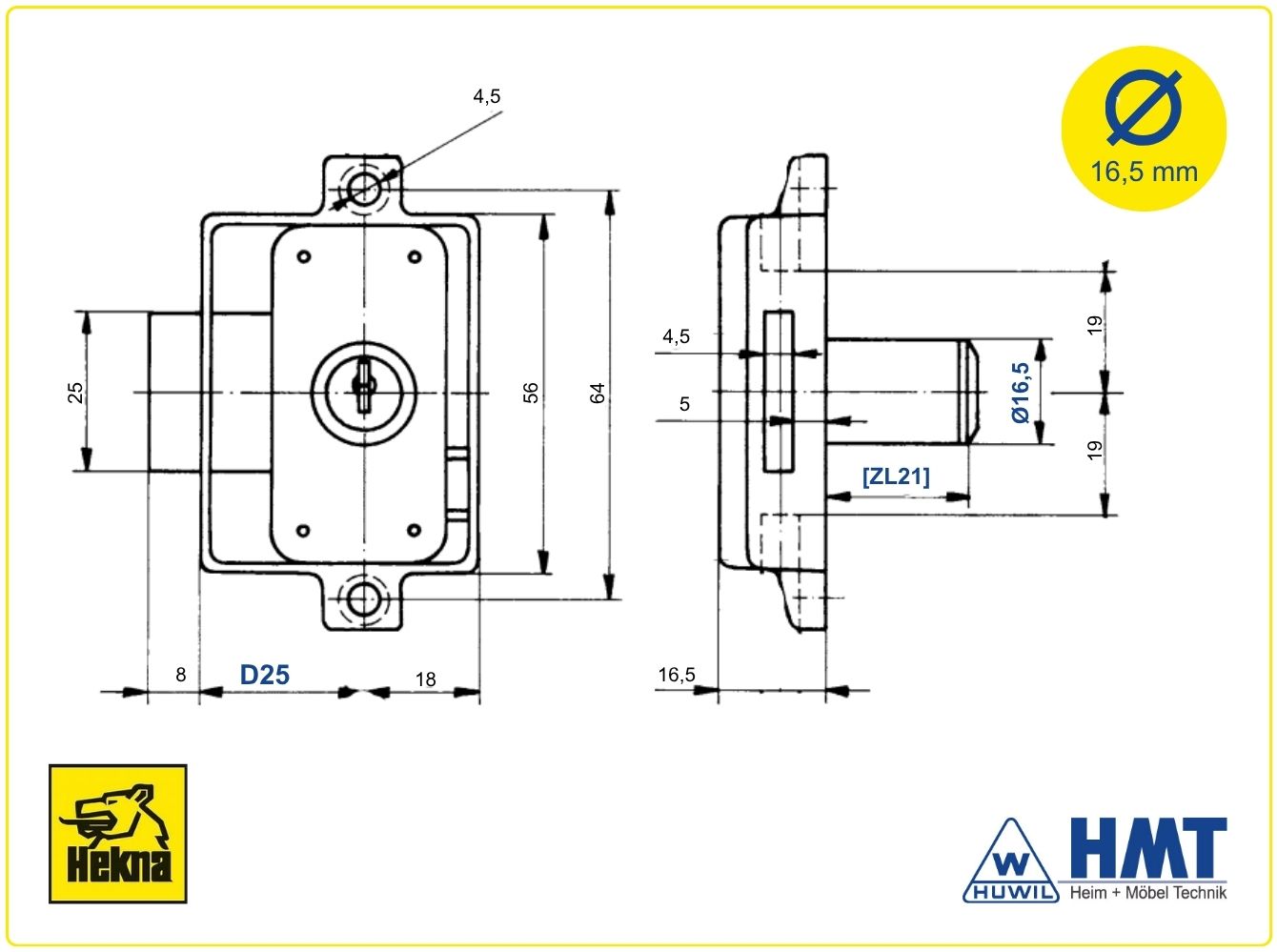

D25: The backset of this furniture lock is 25mm (D25). The backset is the distance from the center of the keyhole to the front edge of the lock (forend) – or to the front edge of the cam when the furniture lock is in the unlocked position.

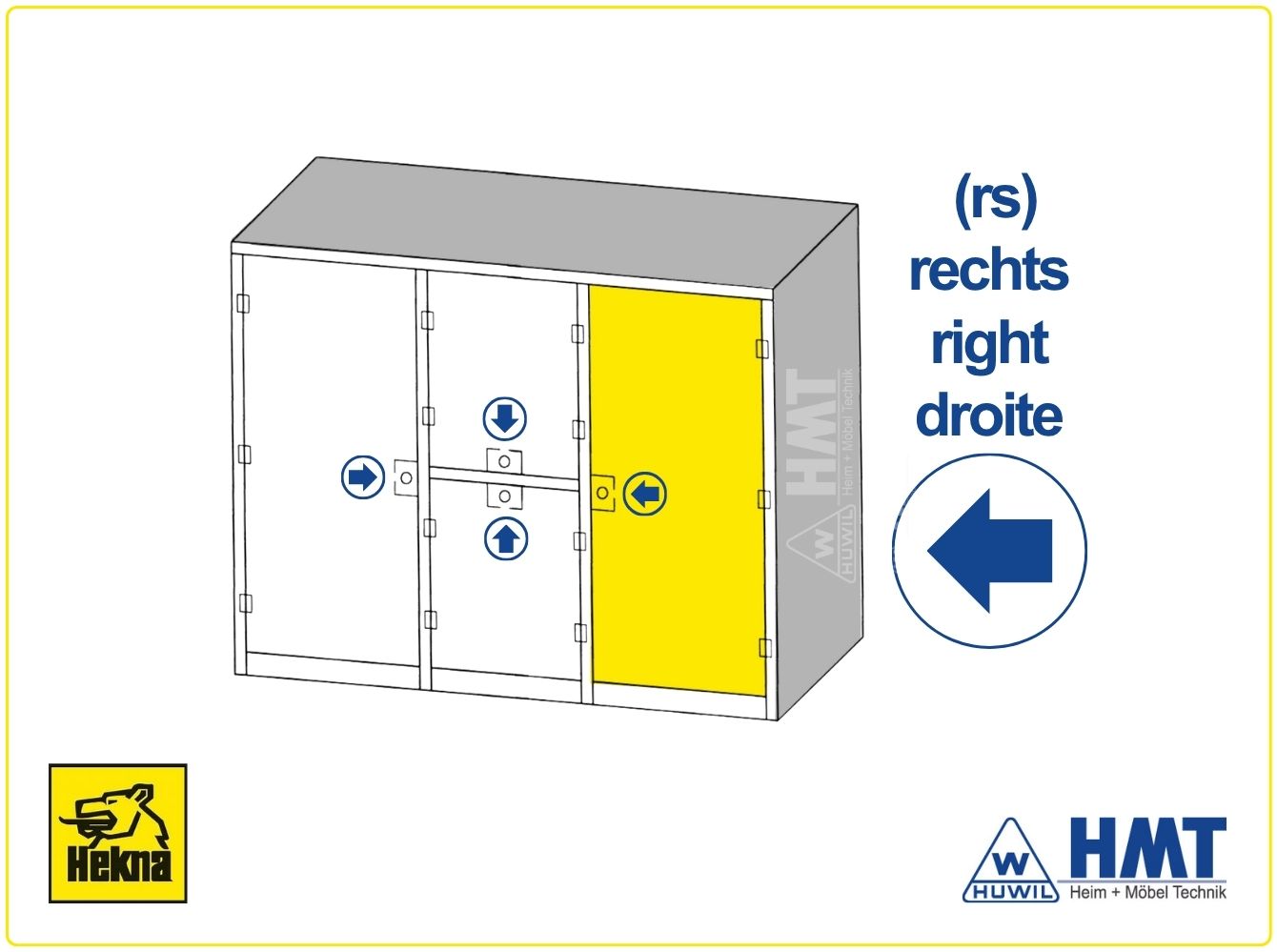

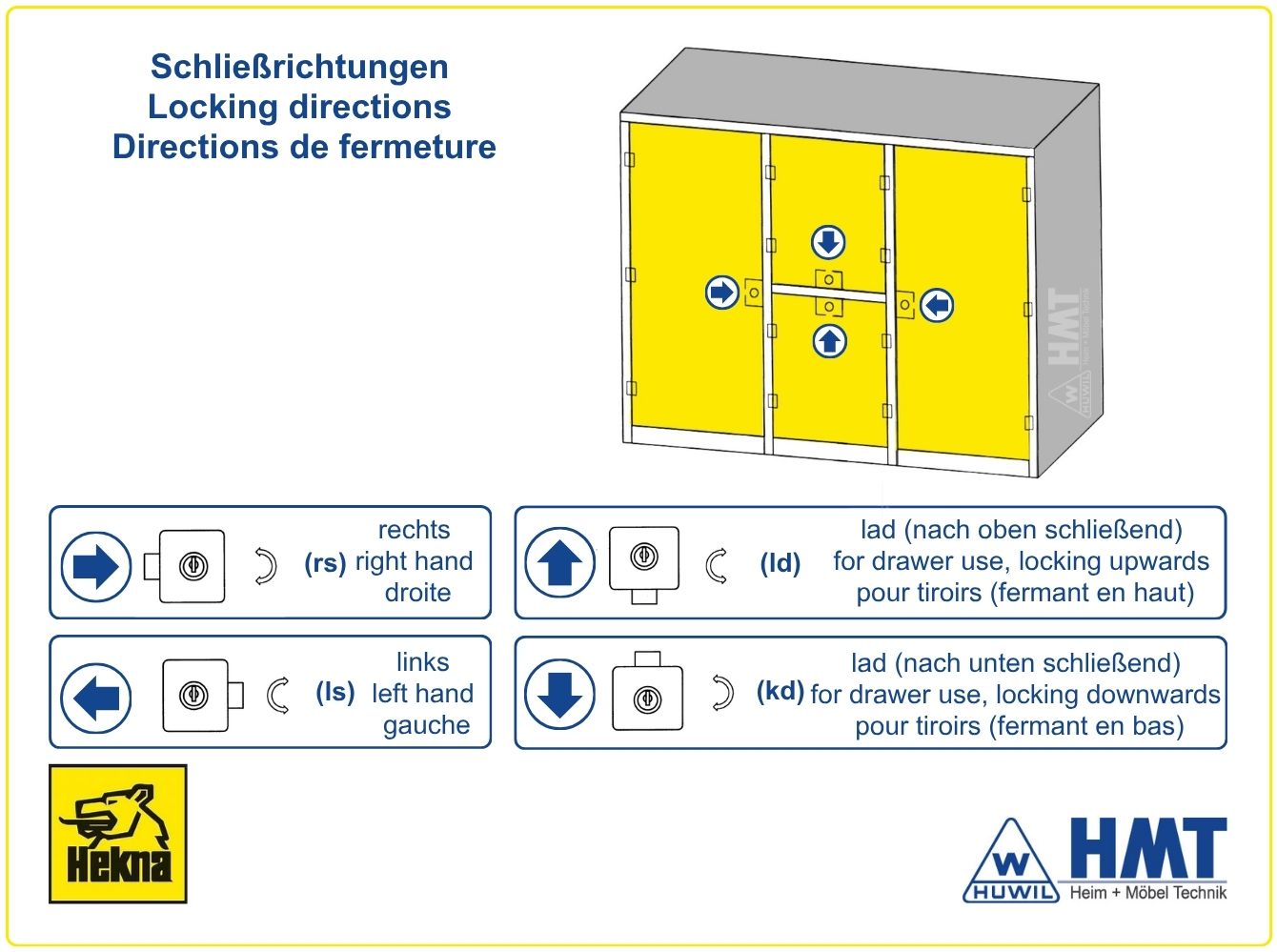

rs: This furniture lock is designed for right-hand (rs) applications. The hinges are located on the right-hand side; the door opens to the right.

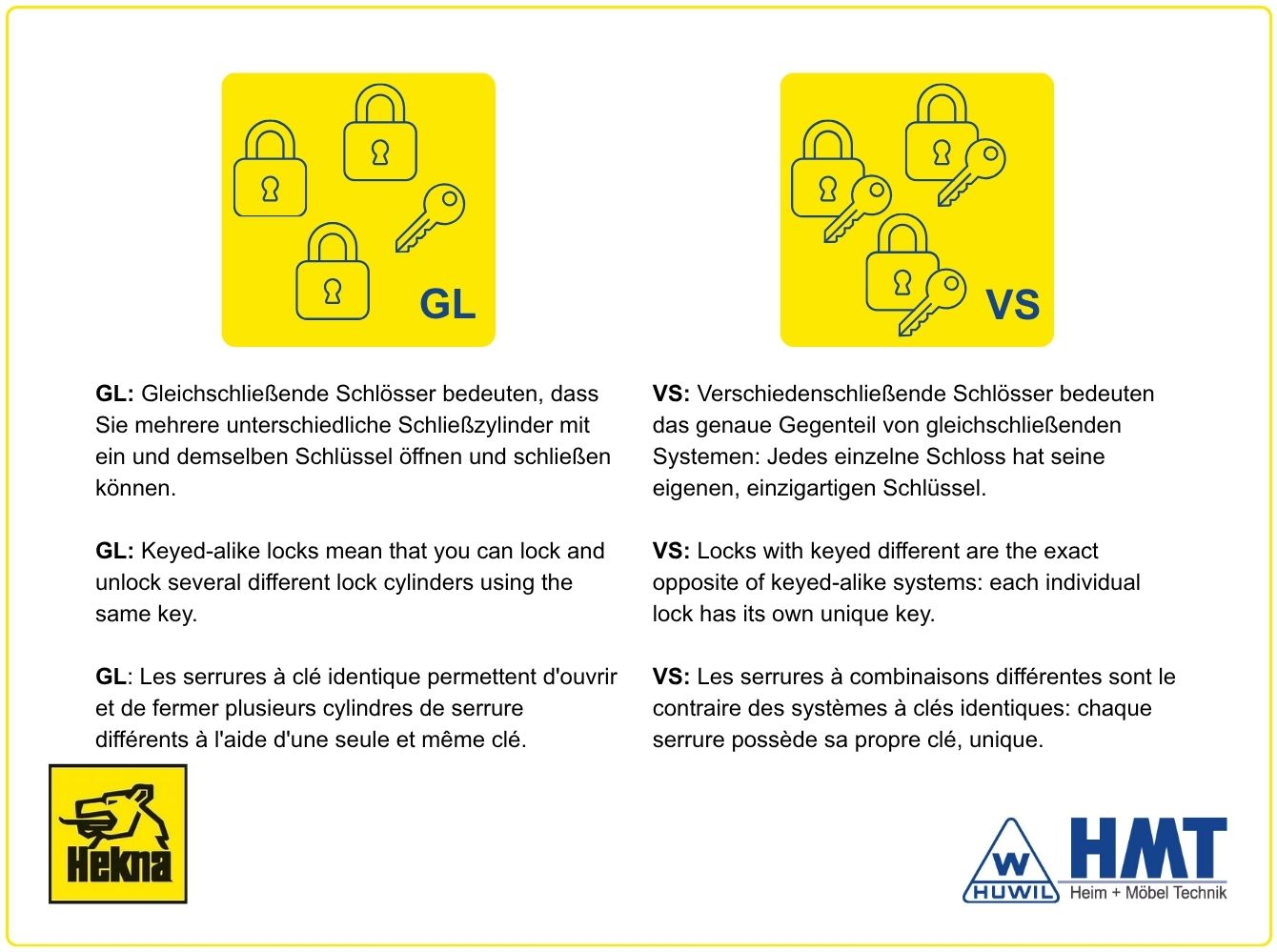

VS: The key code of this lock is selected at random from the corresponding keying system. If you order several locks of this type, the key code numbers (visible on the cylinder core and the cylinder key) will be different.
| BRAND: | HEKNA |
|---|---|
| CYLINDER DIMENSIONS: | Zylinderlänge 21mm , Ø 16,5 mm |
| KEYING GROUP: | [SK: K-10] HEKNA / Schließungen 1001 bis 1425 / (GL) 1060 |
| PRODUCT GROUP: | Espagnolette lock for cylinder |
| SYSTEM: | Hekna-V |
| LOCK TYPE: | Hekna Typ 331 |
| BACKSET: | (D25) 25 mm |
| LOCKING DIRECTION: | (rs) right |
| KEYING: | (VS) keyed different |

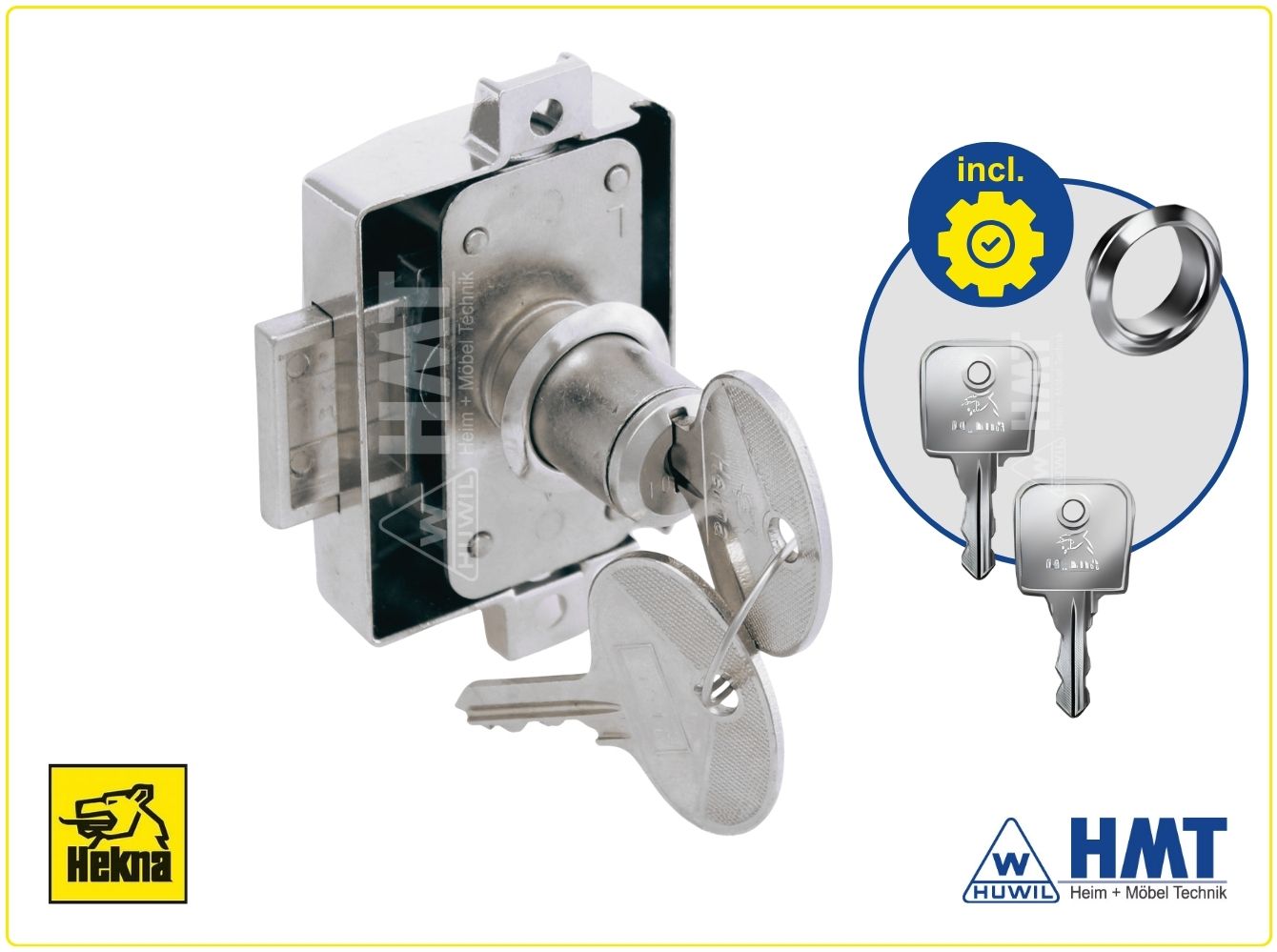

| ACCESSORIES: | 1 rosette , 2 steel keys |
| CYLINDER CORE: | with mounted cylinder core |
| FUNCTION: | 3-Punkt-Verriegelung durch die Stangen oben und unten |
| HOLE FOR ROD HOLE: | [6] for 6 mm bar |
| MOUNTING TYPE: | for screwing |
| FINISH: | nickel plated |
