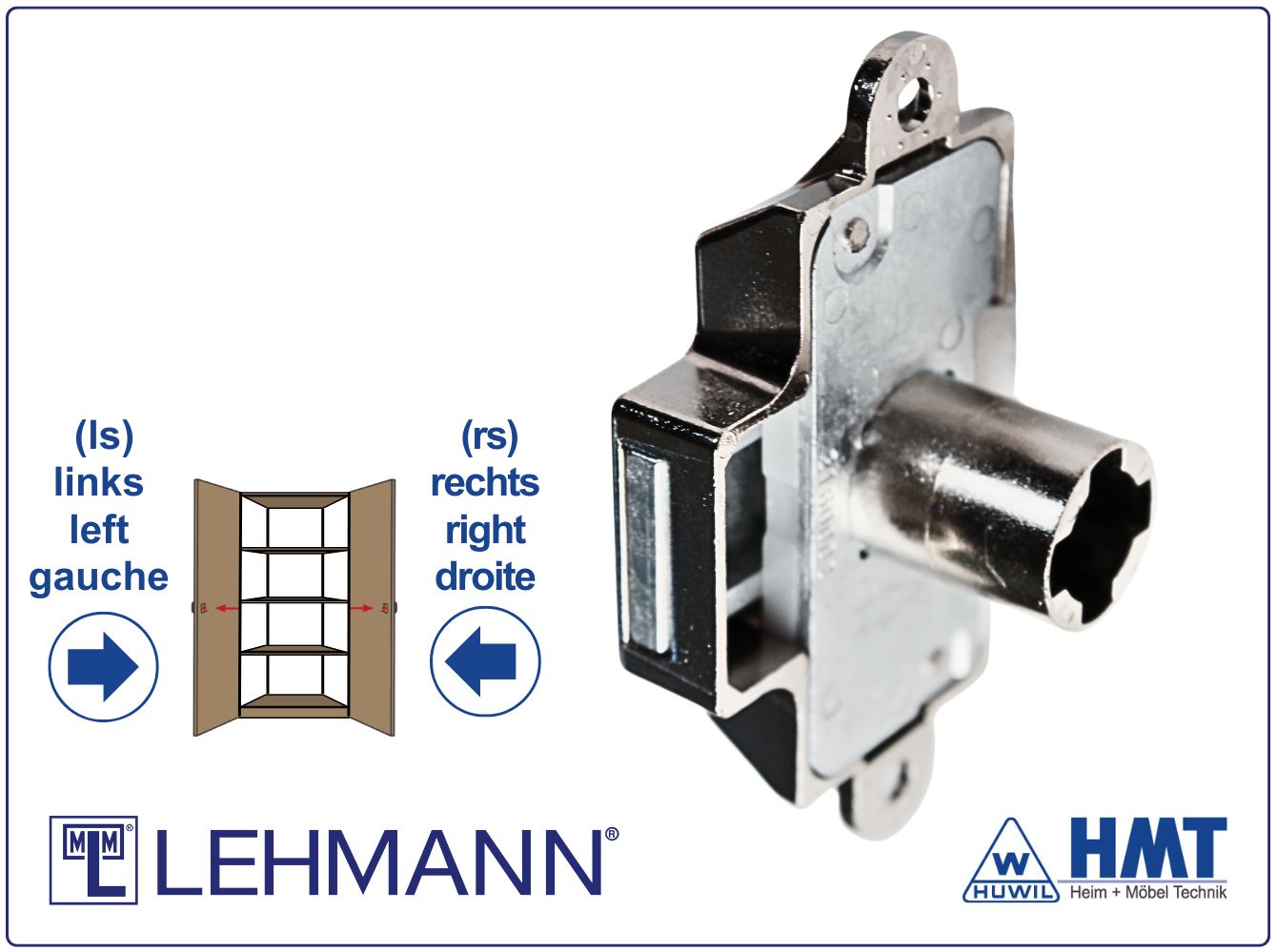

MLM LOCK Type 550 P4 - D25 / rs + ls

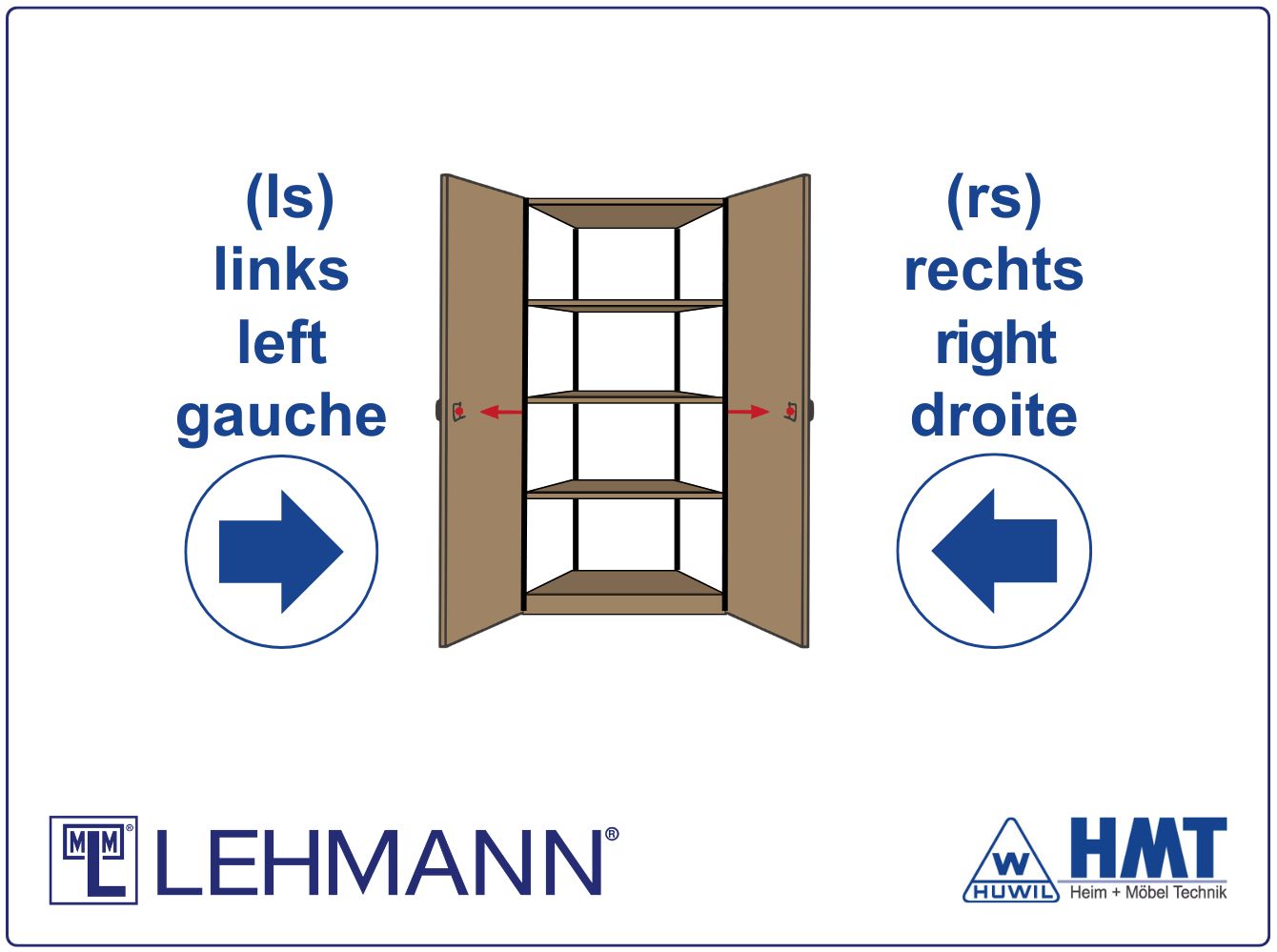

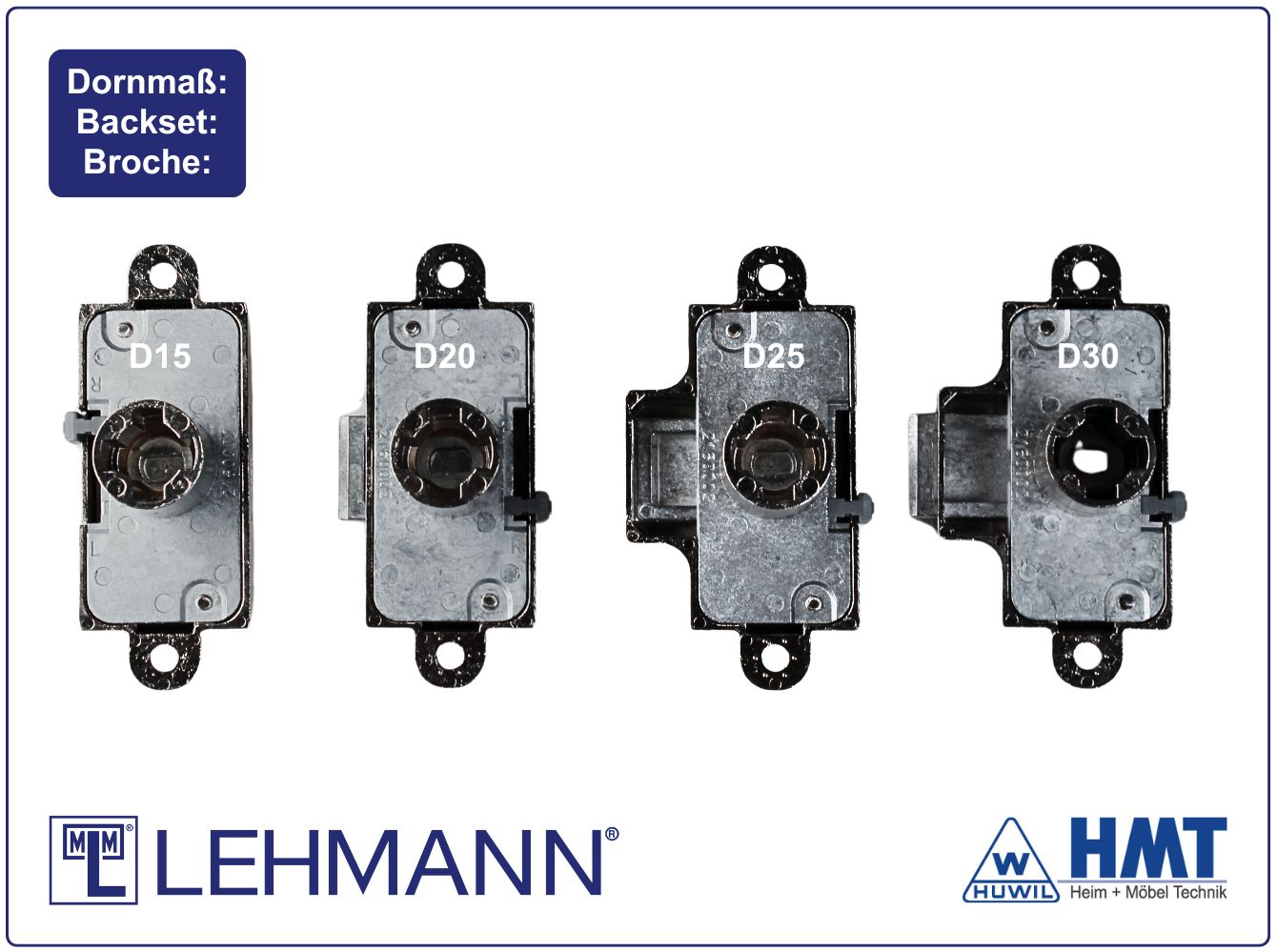

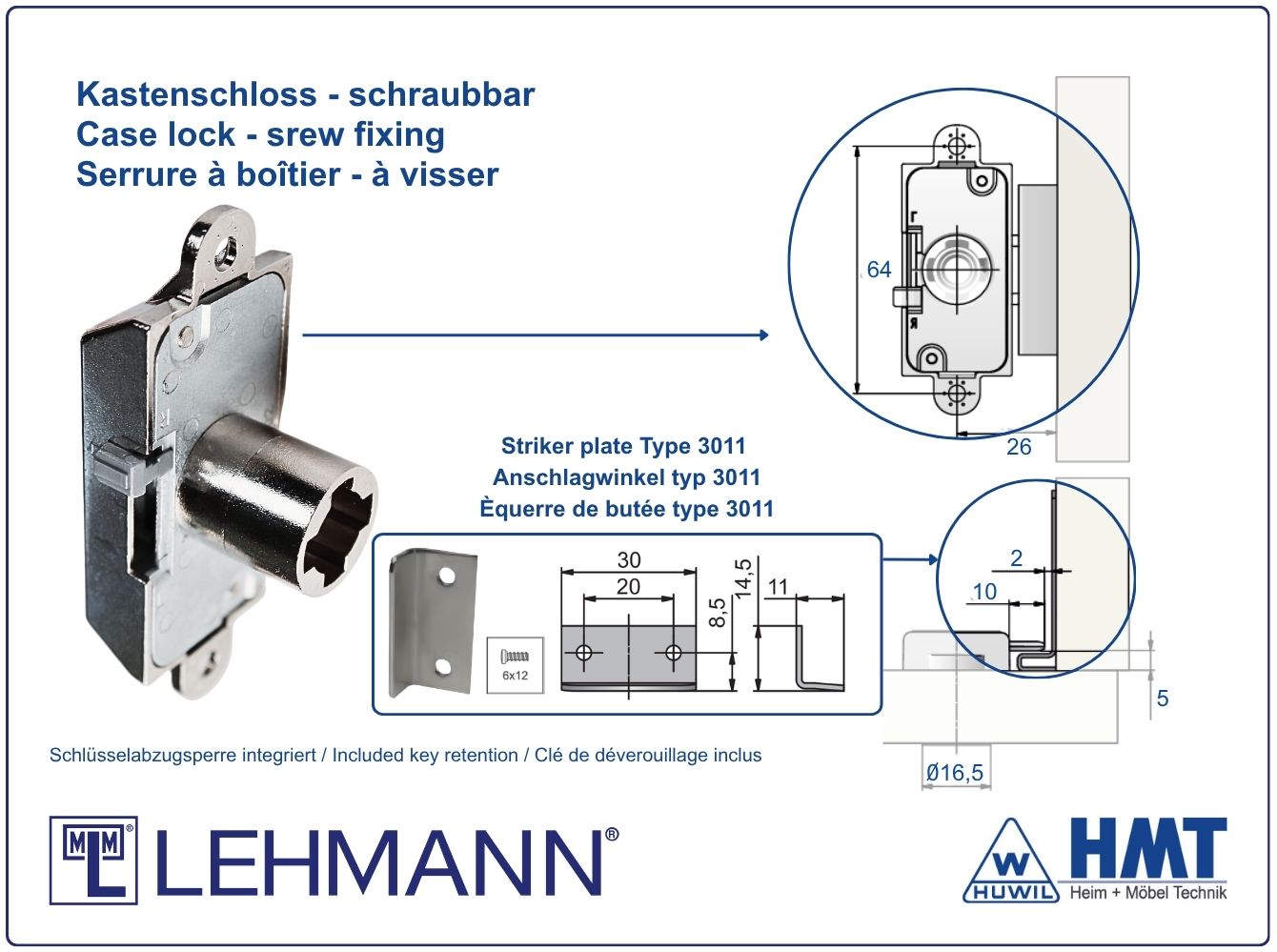

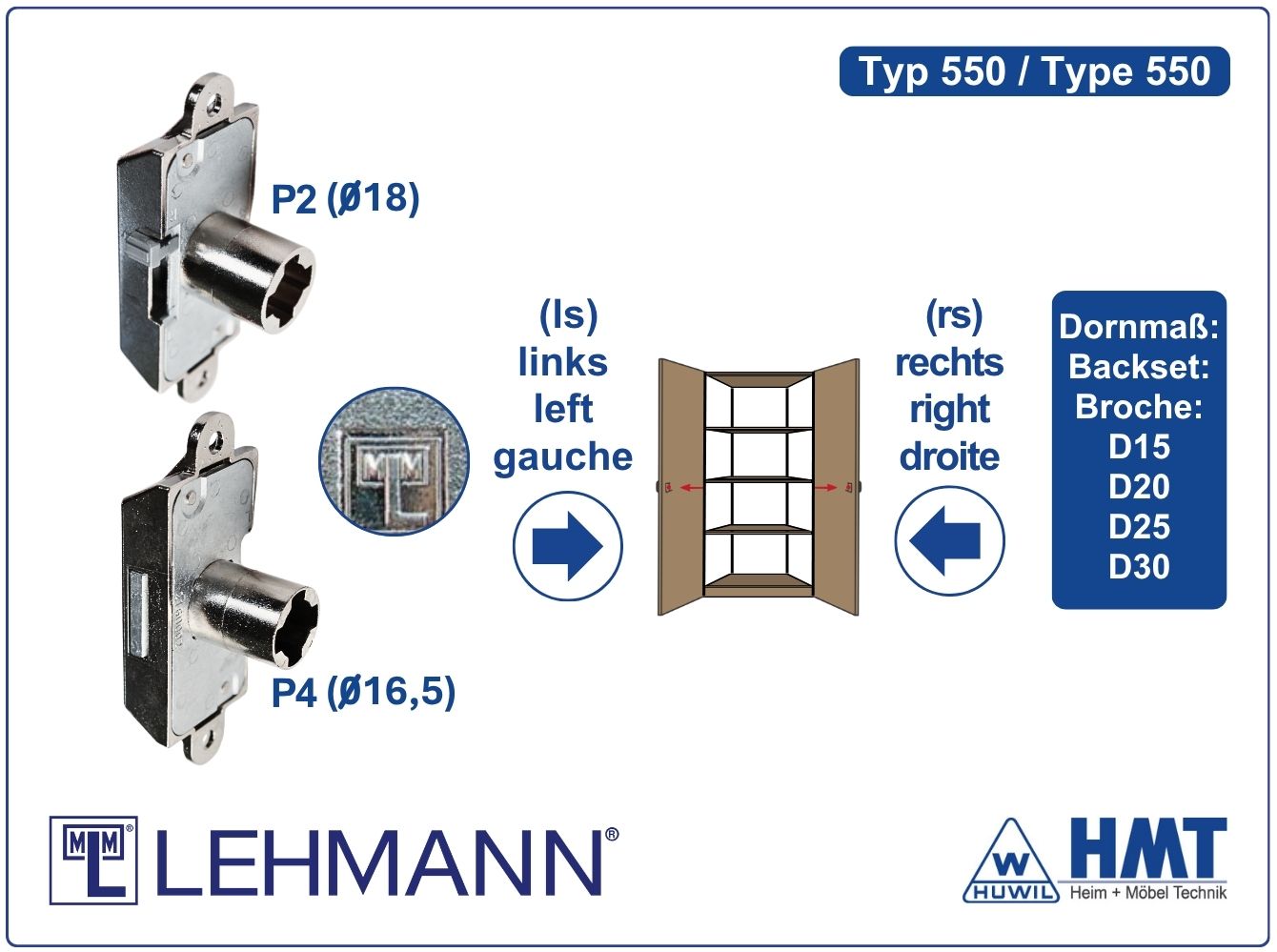

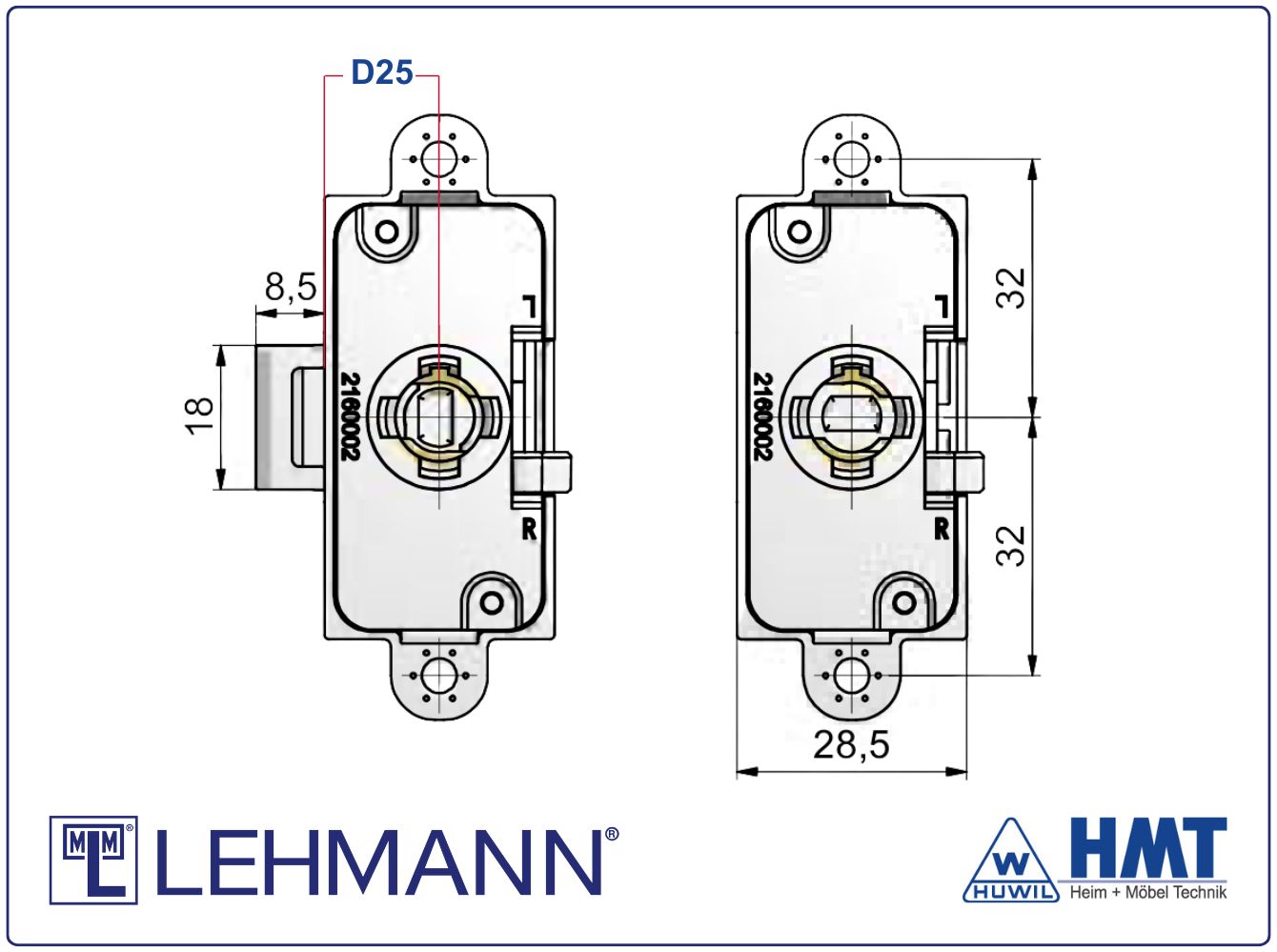

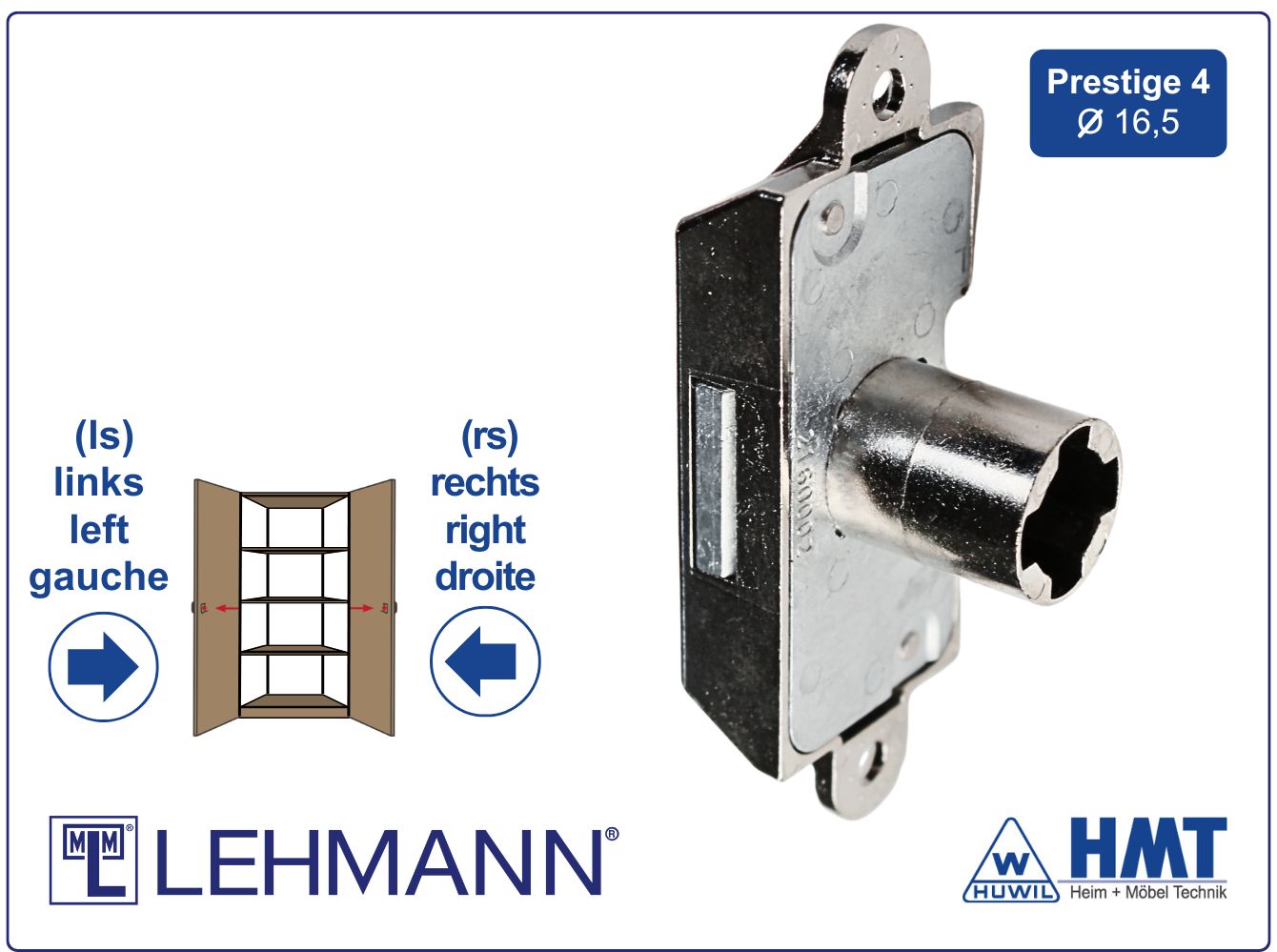

MLM LEHMANN Cylinder locks - Made in Germany MLM LEHMANN Case Lock Type 550 P4 - D15 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 4 (P4) Ø16.5mmThe MLM LEHMANN CASE LOCK TYPE 550 is available in the locking systems PRESTIGE 4 (P4) Ø16.5mm and PRESTIGE 2 (P2) Ø18mm. It is a nickel-plated, surface-mounted cylinder lock equipped with an adjustable key retention and can be set for right-hand or left-hand application depending on the cabinet door. This case lock is available in different backsets in both locking systems P4 and P2.The backset describes the distance from the center of the keyhole (in this case the center of the cylinder into which the cylinder core is inserted) to the front edge of the lock (forend) when the furniture cylinder lock is in the open position.The cylinder length [ZL] here is 20mm – other available cylinder lengths: 26mm [ZL26] and 32mm [ZL32].The MLM LEHMANN Case Lock (rim lock) Type 550 P4 - D15 / rs + ls offered here is part of the PRESTIGE 4 (P4) Ø16.5mm locking system.cylinder length 20mmbackset 15mmadjustable right/leftincluding adjustable key retention90° rotation anglenickel-platedrequired accessories to be ordered separately: cylinder core P4 Ø16.5mmadditional accessories: escutcheon / strike plate / mounting bracket / fixing material

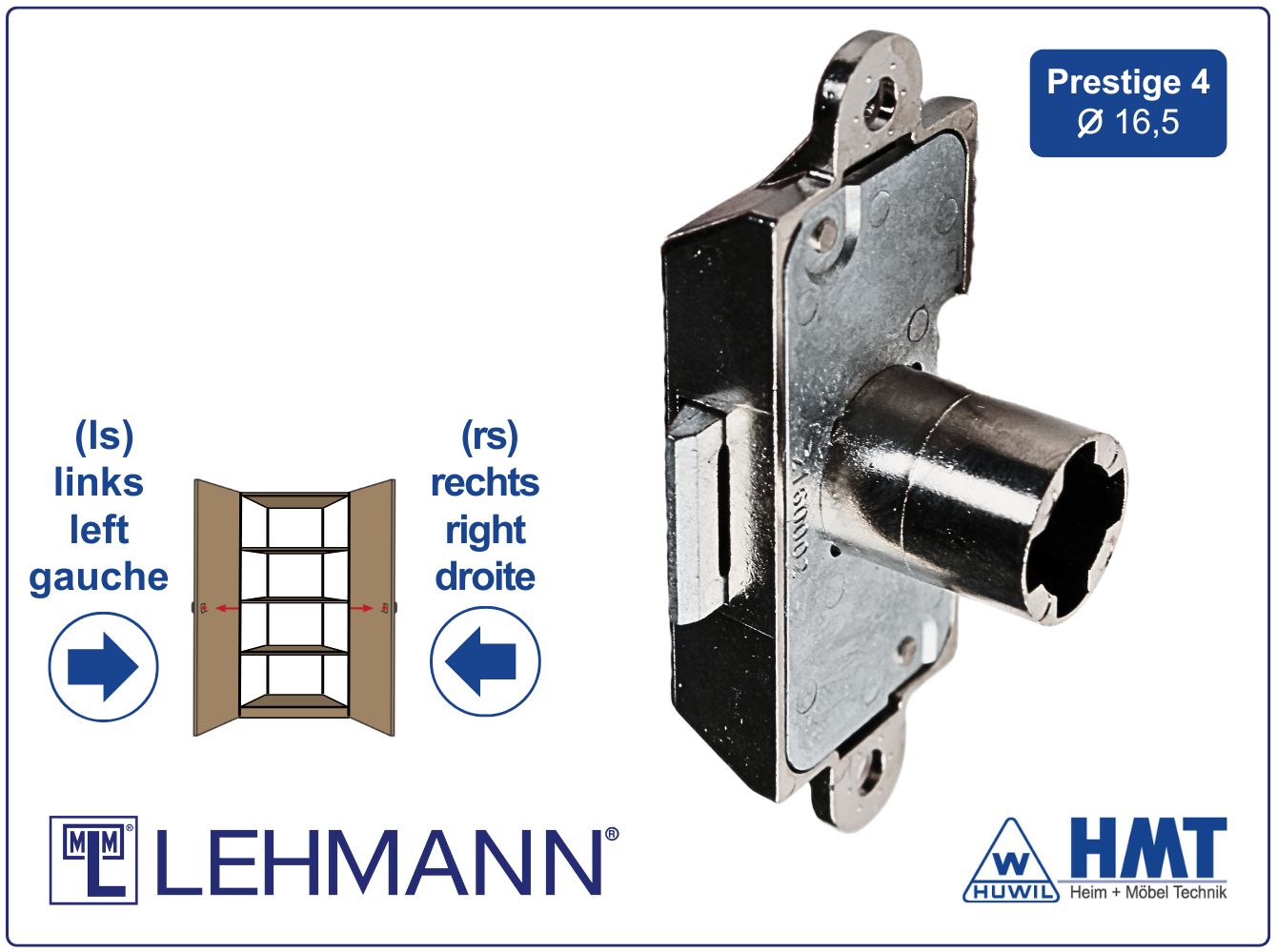

MLM LEHMANN Cylinder locks - Made in Germany MLM LEHMANN Case Lock Type 550 P4 - D20 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 4 (P4) Ø16.5mmThe MLM LEHMANN CASE LOCK TYPE 550 is available in the locking systems PRESTIGE 4 (P4) Ø16.5mm and PRESTIGE 2 (P2) Ø18mm. It is a nickel-plated, surface-mounted cylinder lock equipped with an adjustable key retention and can be set for right-hand or left-hand application depending on the cabinet door. This case lock is available in different backsets in both locking systems P4 and P2.The backset describes the distance from the center of the keyhole (in this case the center of the cylinder into which the cylinder core is inserted) to the front edge of the lock (forend) when the furniture cylinder lock is in the open position.The cylinder length [ZL] here is 20mm – other available cylinder lengths: 26mm [ZL26] and 32mm [ZL32].The MLM LEHMANN Case Lock (rim lock) Type 550 P4 - D20 / rs + ls offered here is part of the PRESTIGE 4 (P4) Ø16.5mm locking system.cylinder length 20mmbackset 20mmadjustable right/leftincluding adjustable key retention90° rotation anglenickel-platedrequired accessories to be ordered separately: cylinder core P4 Ø16.5mmadditional accessories: escutcheon / strike plate / mounting bracket / fixing material

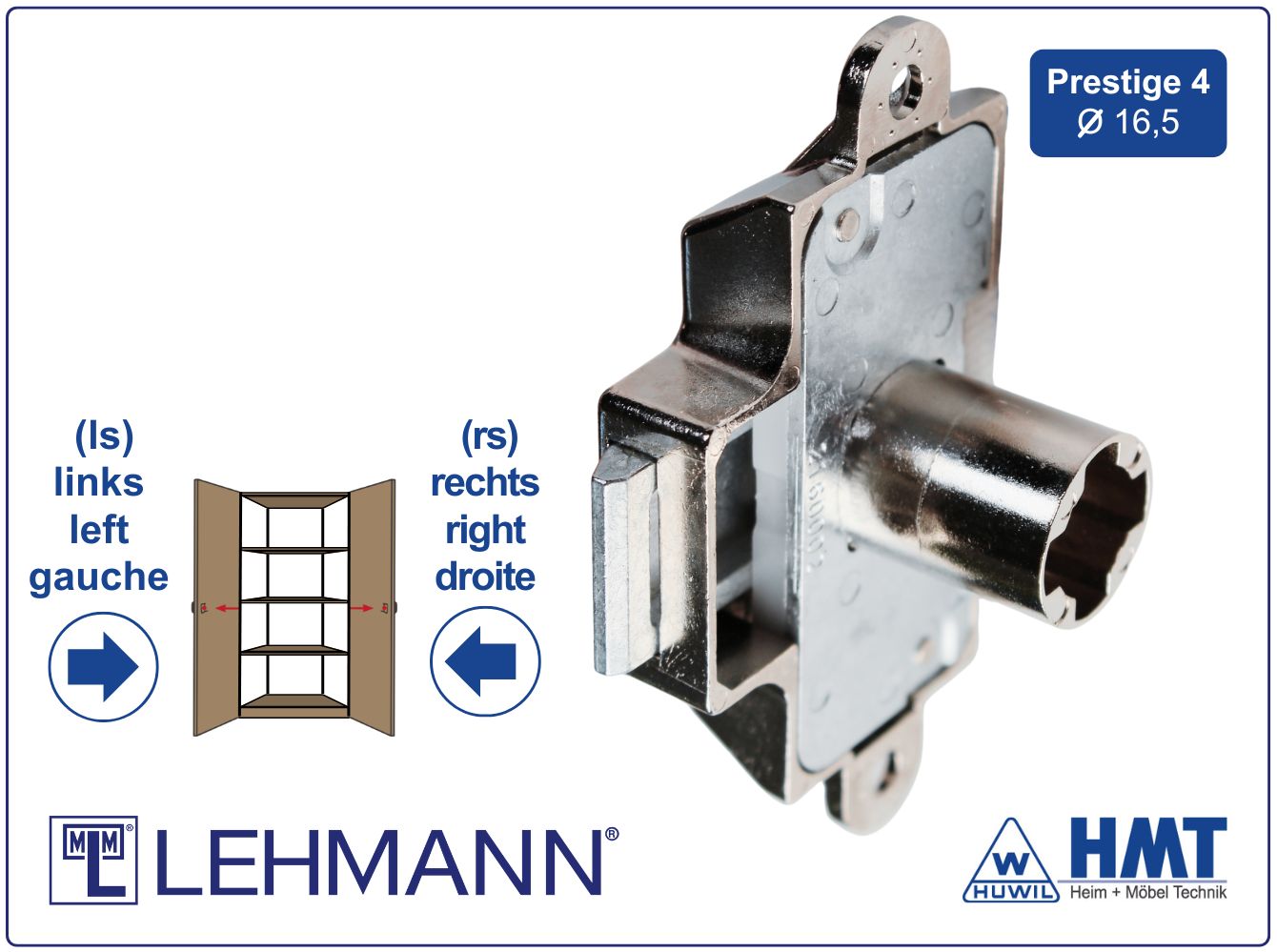

MLM LEHMANN Cylinder locks - Made in Germany MLM LEHMANN Case Lock Type 550 P4 - D30 / rs + lsMLM LEHMANN Cylinder locks PRESTIGE 4 (P4) Ø16.5mmThe MLM LEHMANN CASE LOCK TYPE 550 is available in the locking systems PRESTIGE 4 (P4) Ø16.5mm and PRESTIGE 2 (P2) Ø18mm. It is a nickel-plated, surface-mounted cylinder lock equipped with an adjustable key retention and can be set for right-hand or left-hand application depending on the cabinet door. This case lock is available in different backsets in both locking systems P4 and P2.The backset describes the distance from the center of the keyhole (in this case the center of the cylinder into which the cylinder core is inserted) to the front edge of the lock (forend) when the furniture cylinder lock is in the open position.The cylinder length [ZL] here is 20mm – other available cylinder lengths: 26mm [ZL26] and 32mm [ZL32].The MLM LEHMANN Case Lock (rim lock) Type 550 P4 - D30 / rs + ls offered here is part of the PRESTIGE 4 (P4) Ø16.5mm locking system.cylinder length 20mmbackset 30mmadjustable right/leftincluding adjustable key retention90° rotation anglenickel-platedrequired accessories to be ordered separately: cylinder core P4 Ø16.5mmadditional accessories: escutcheon / strike plate / mounting bracket / fixing material
