MLM KNOB Type 571.2 P2 / P4 - ls

MLM LEHMANN Locking systems with added value - Made in Germany

---

MLM LEHMANN Turn Handle Type 571.2 P2 / P4

MLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mm / MLM LEHMANN Cylinder locks PRESTIGE 4 (P4) Ø16.5mm

The MLM LEHMANN TURN HANDLE TYPE 571.2 can be inserted into all furniture locks of the MLM LEHMANN locking systems P4 and/or P2.

This turn knob is available for either left-hand or right-hand applications.
When looking at the cabinet door from the front (from the side from which it is opened), it is considered a right-hand application if the hinges are mounted on the right side of the cabinet body and the door opens to the right – right-hand (rs).

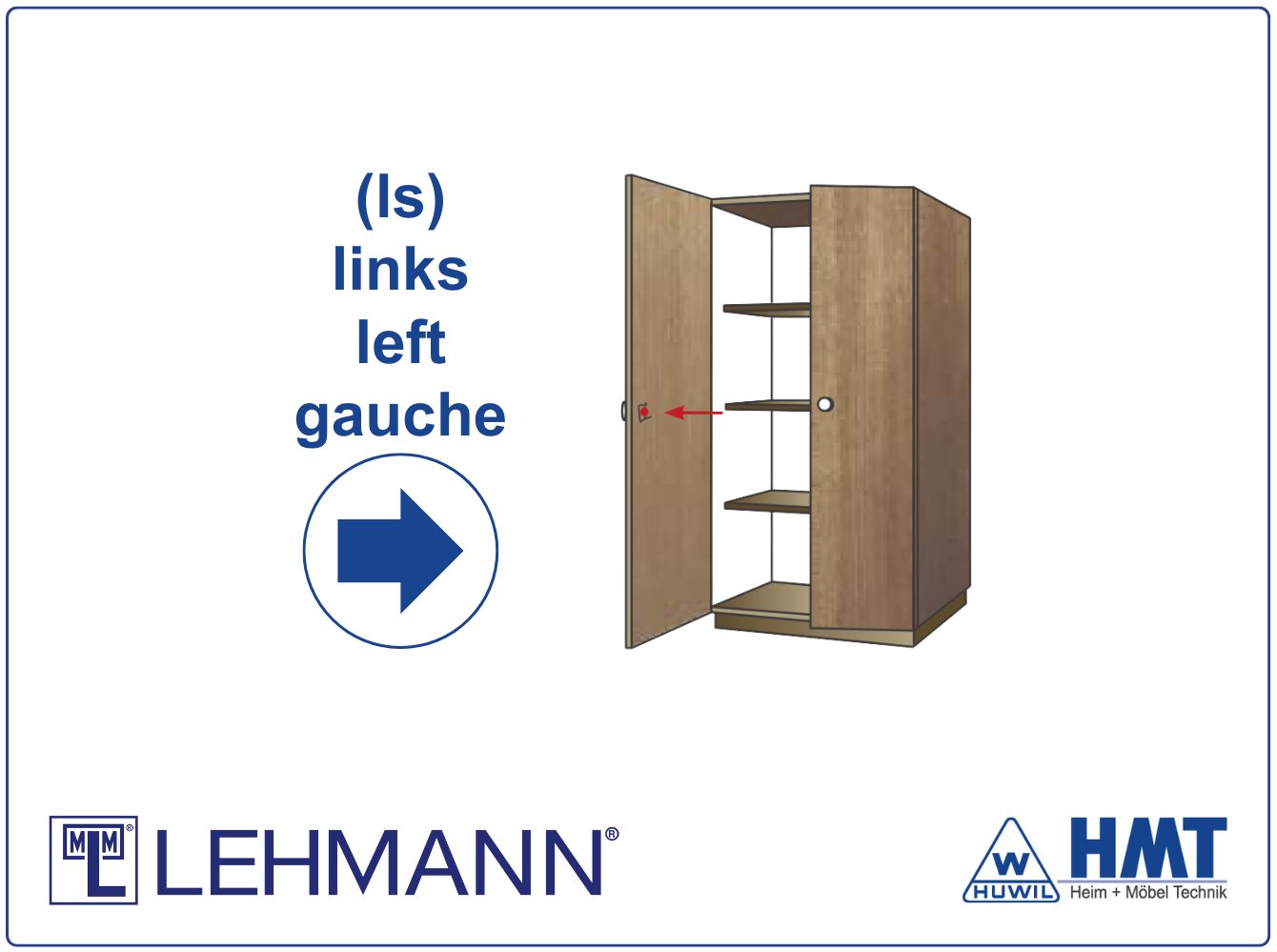

Left-hand (ls): the hinges are mounted on the left side of the cabinet body and the door opens to the left.

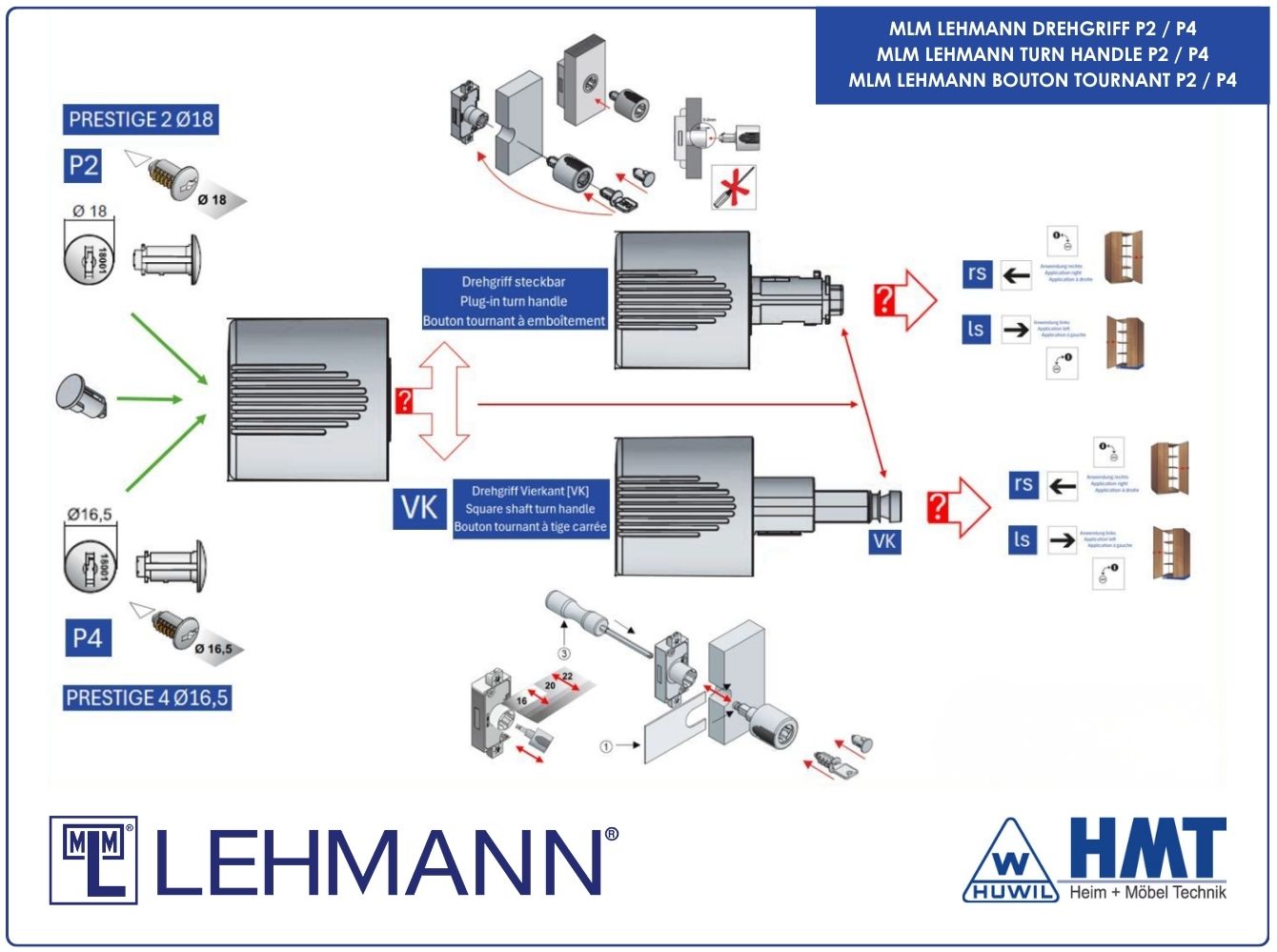

Both a cylinder core of the PRESTIGE 2 Ø18mm locking system and a cylinder core of the PRESTIGE 4 Ø16.5mm locking system can be inserted into this turn handle.

This is a matt nickel-plated plug-in turn handle / knob.

The MLM LEHMANN turn handle Type 571.2 P2/P4 - ls offered here:

• (ls) left-hand application

• compatible with furniture locks of the MLM P2 & MLM P4 systems

• matt nickel-plated

• rotation angle 90°

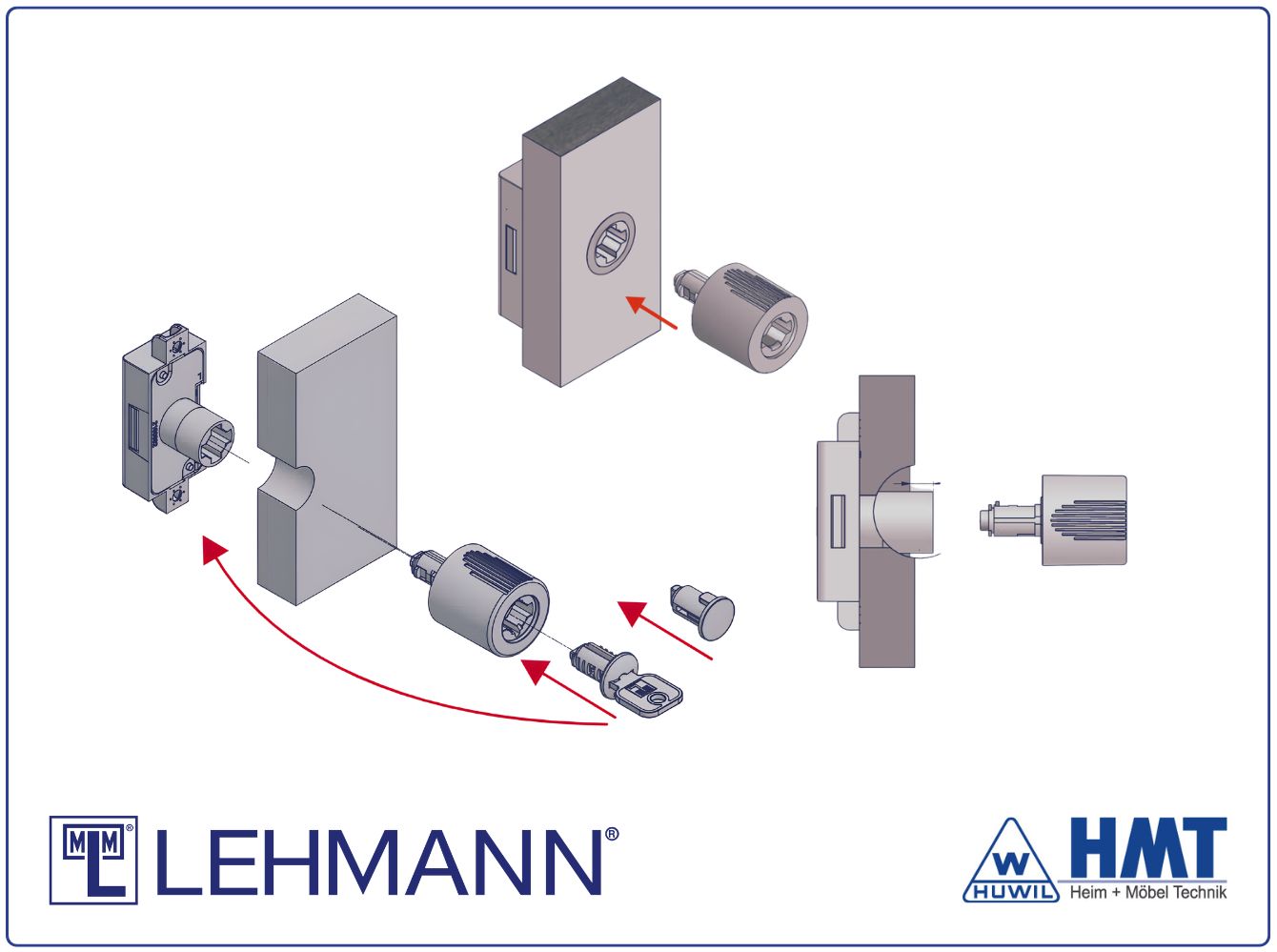

• tool-free installation

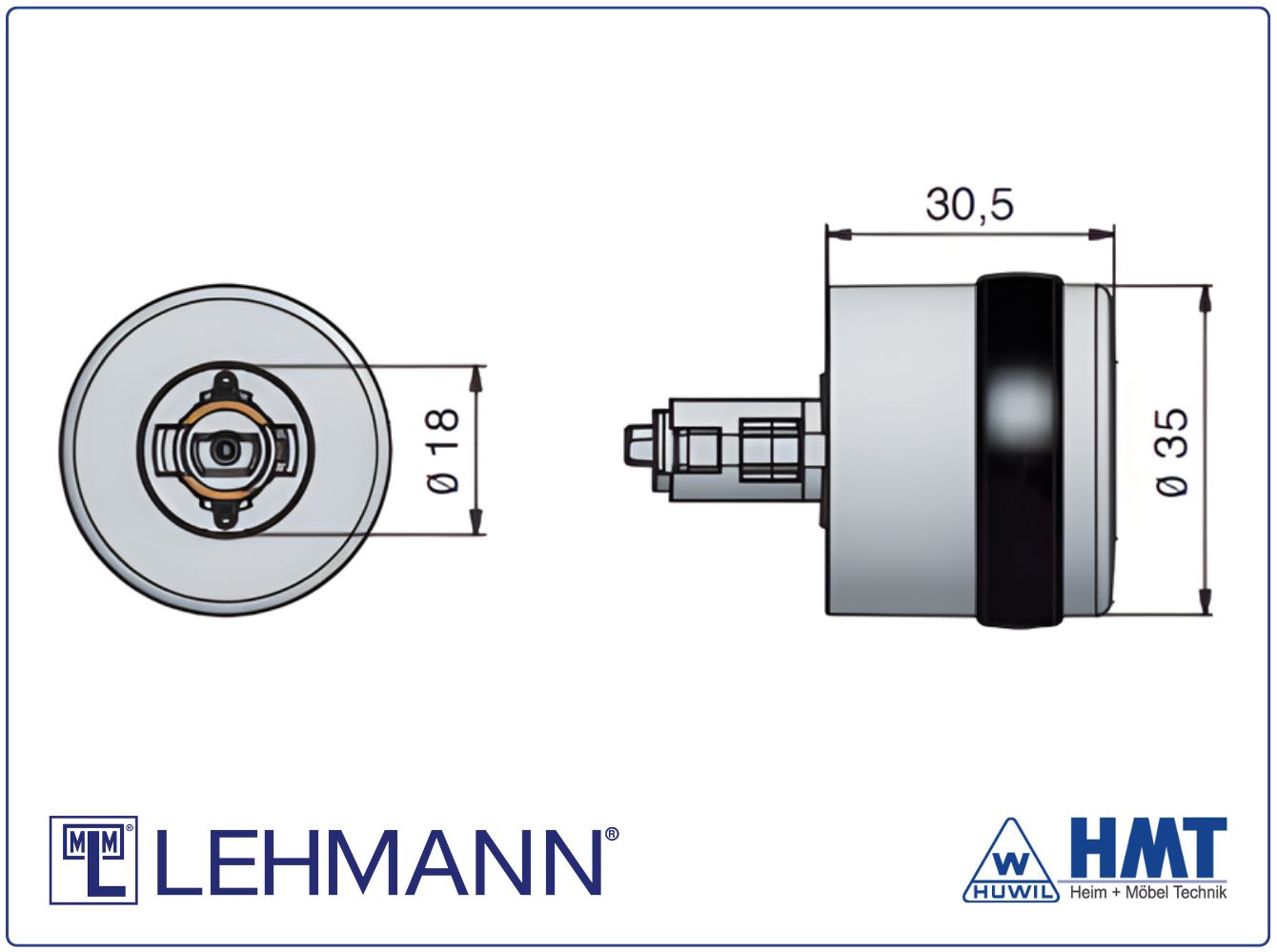

• diameter 33mm

• length 30.5mm

• required accessories to be ordered separately: cylinder core P4 Ø16.5mm or cylinder core P2 Ø18mm or cover cap Type 8872

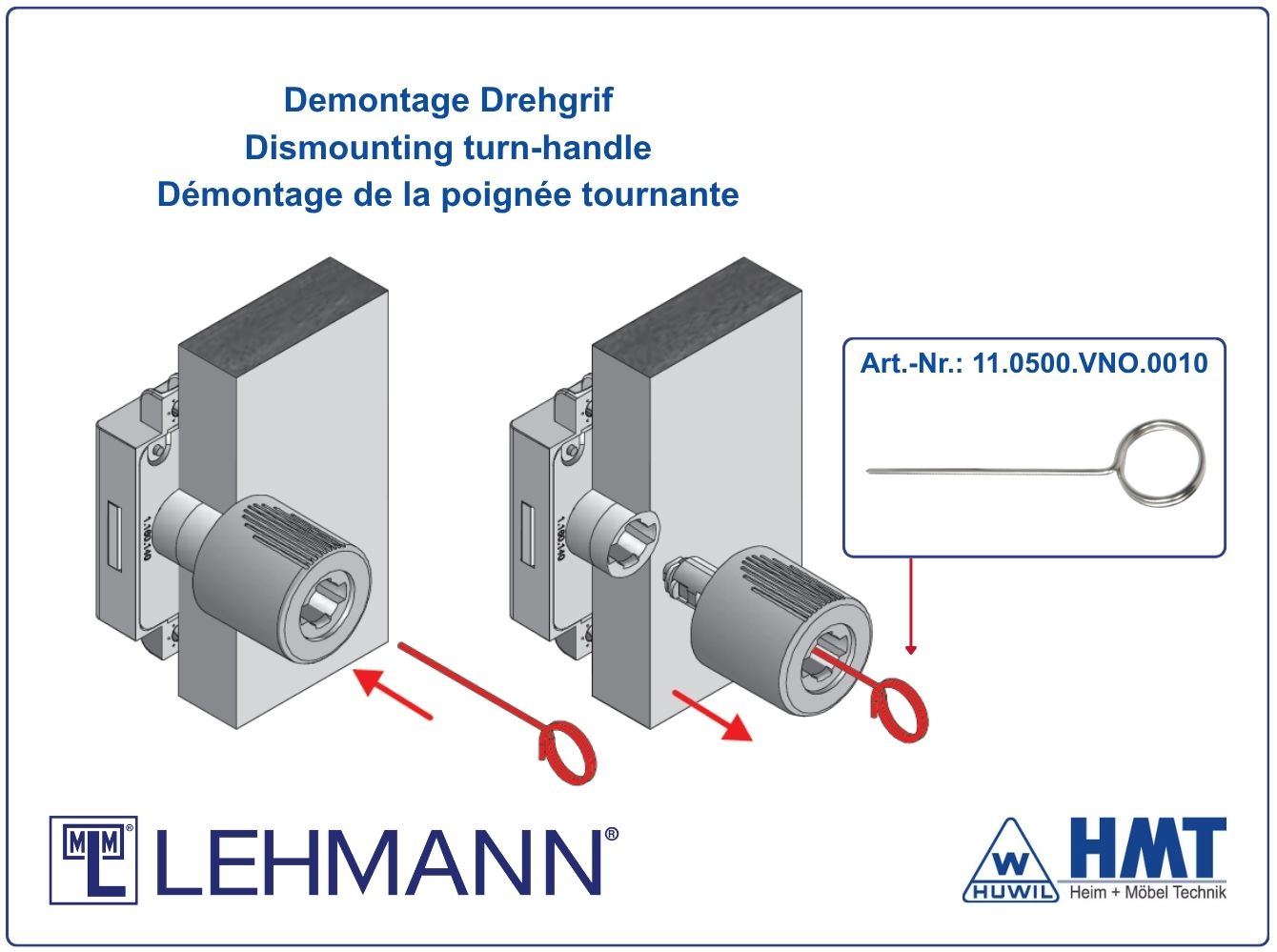

• optional accessory to be ordered separately: removal pin (for removing the turn handle from the furniture lock)
