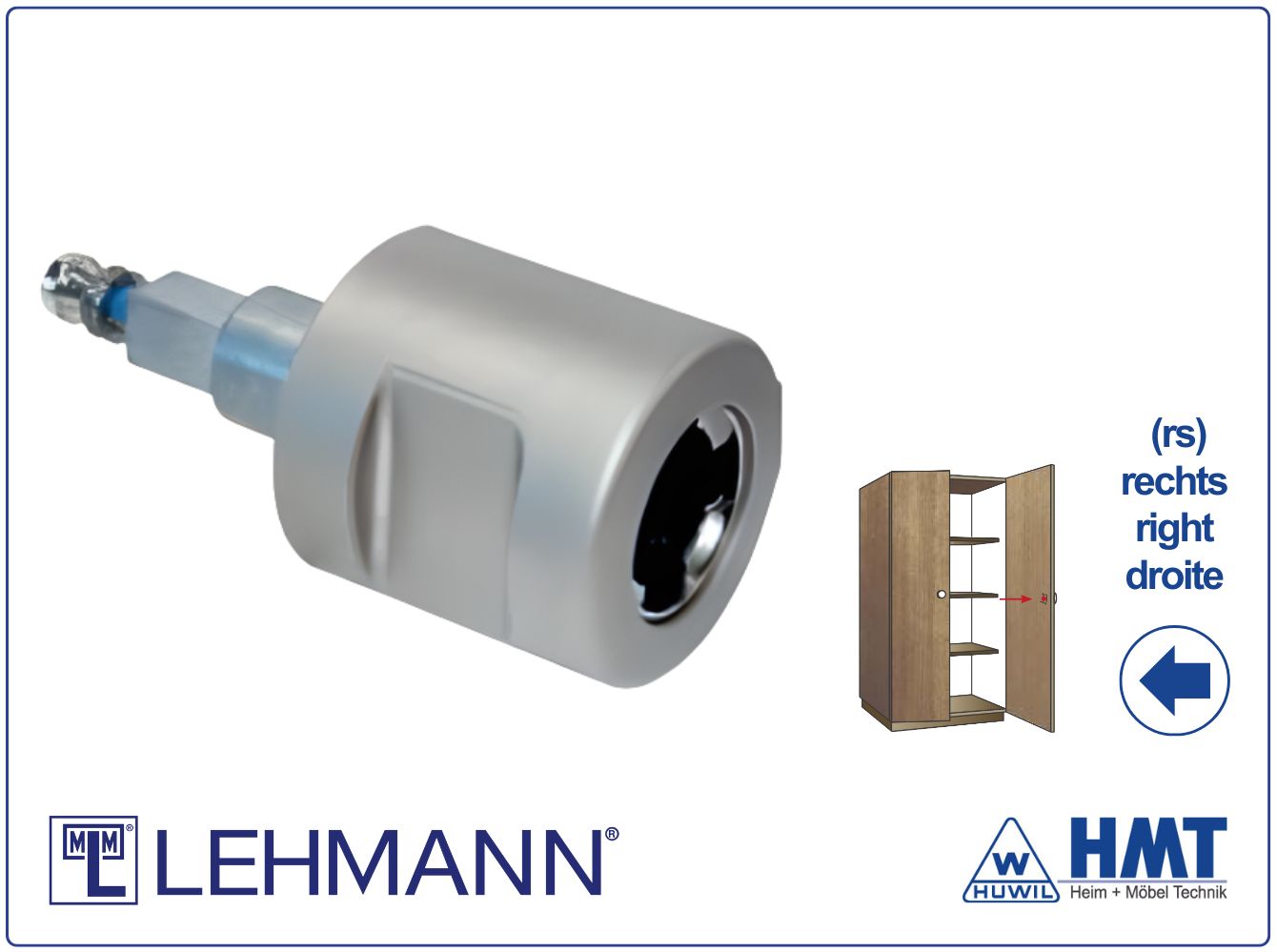

MLM KNOB Type 42.5 P2 / P4 [VK] - rs

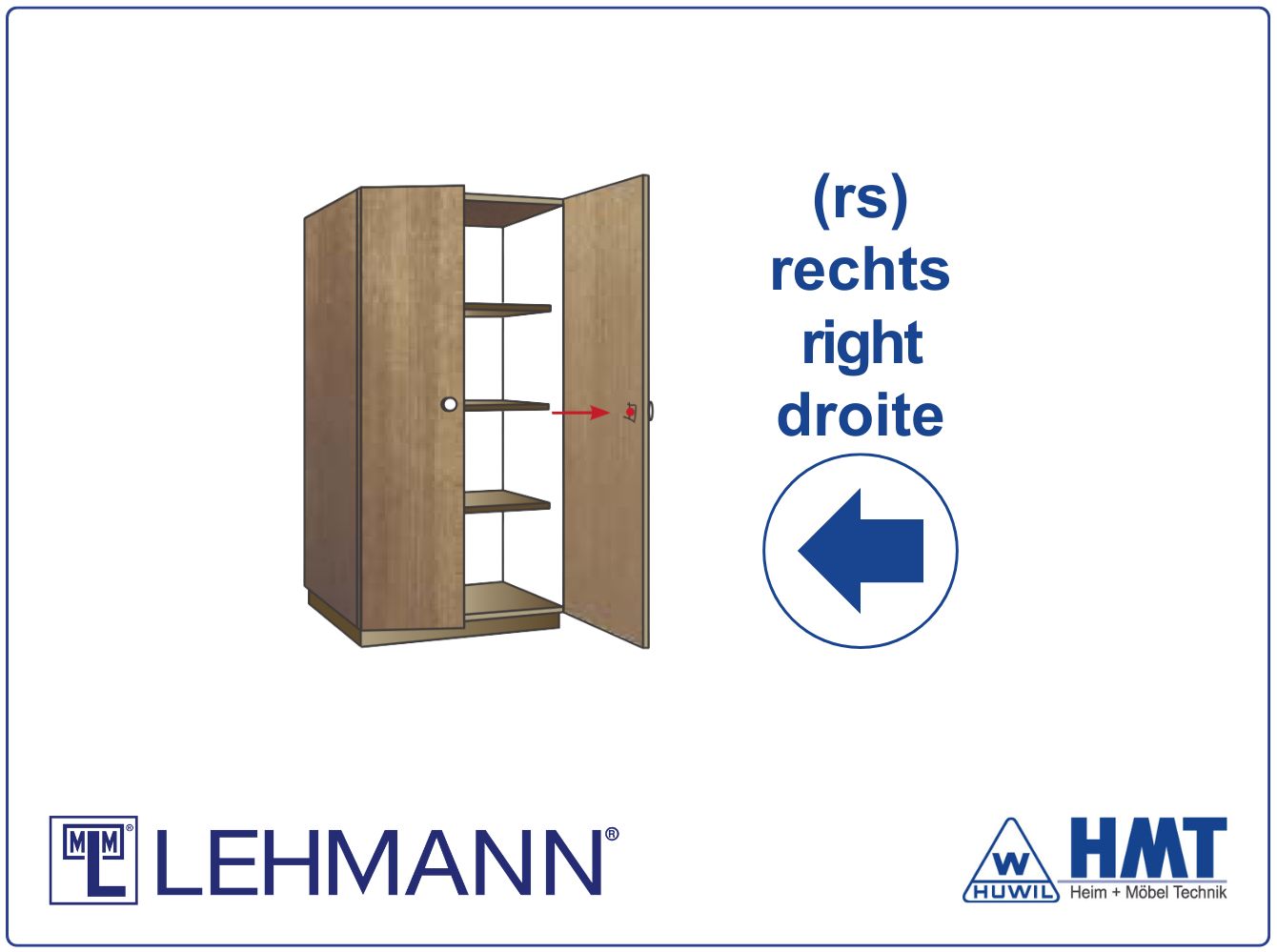

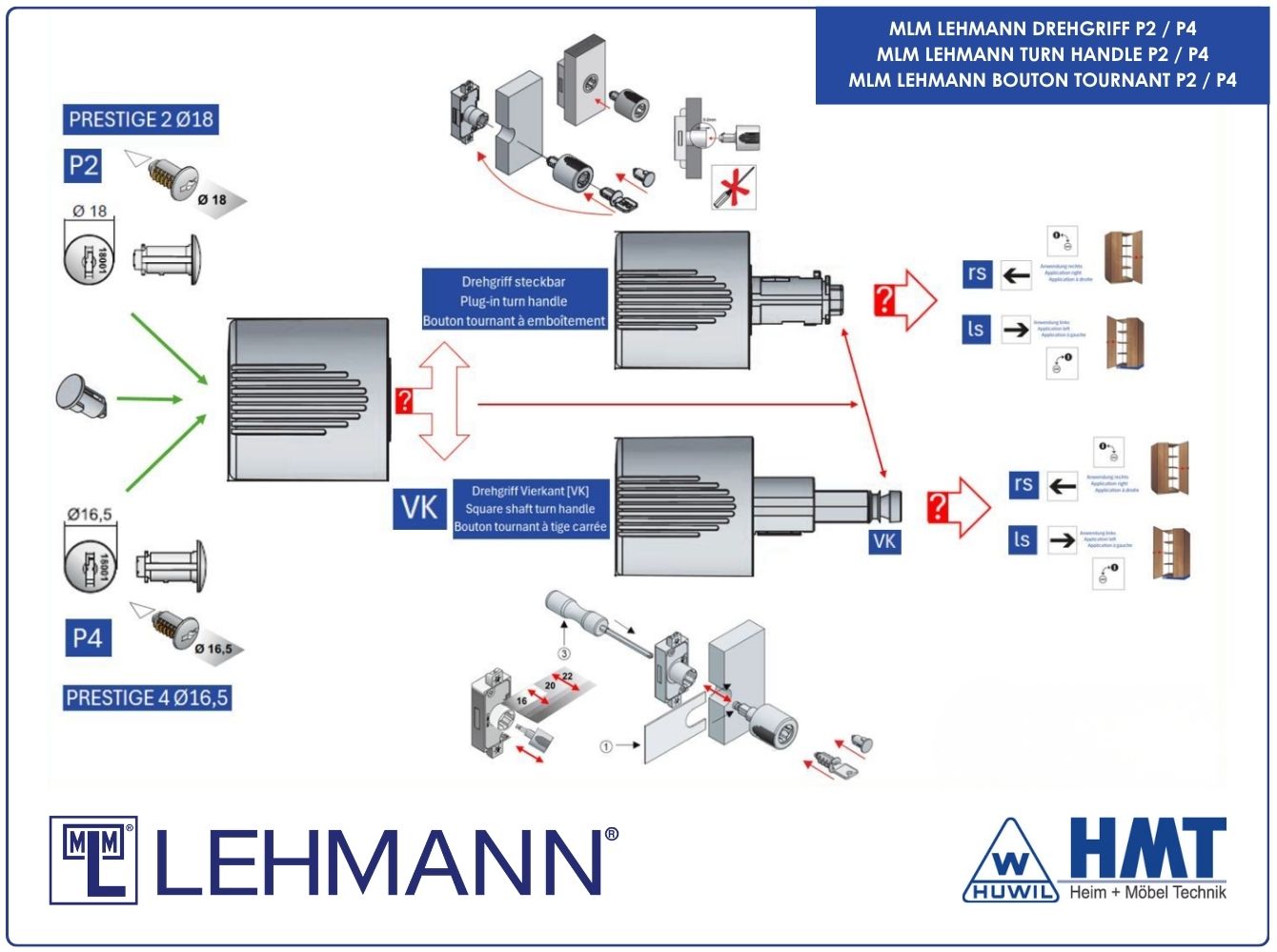

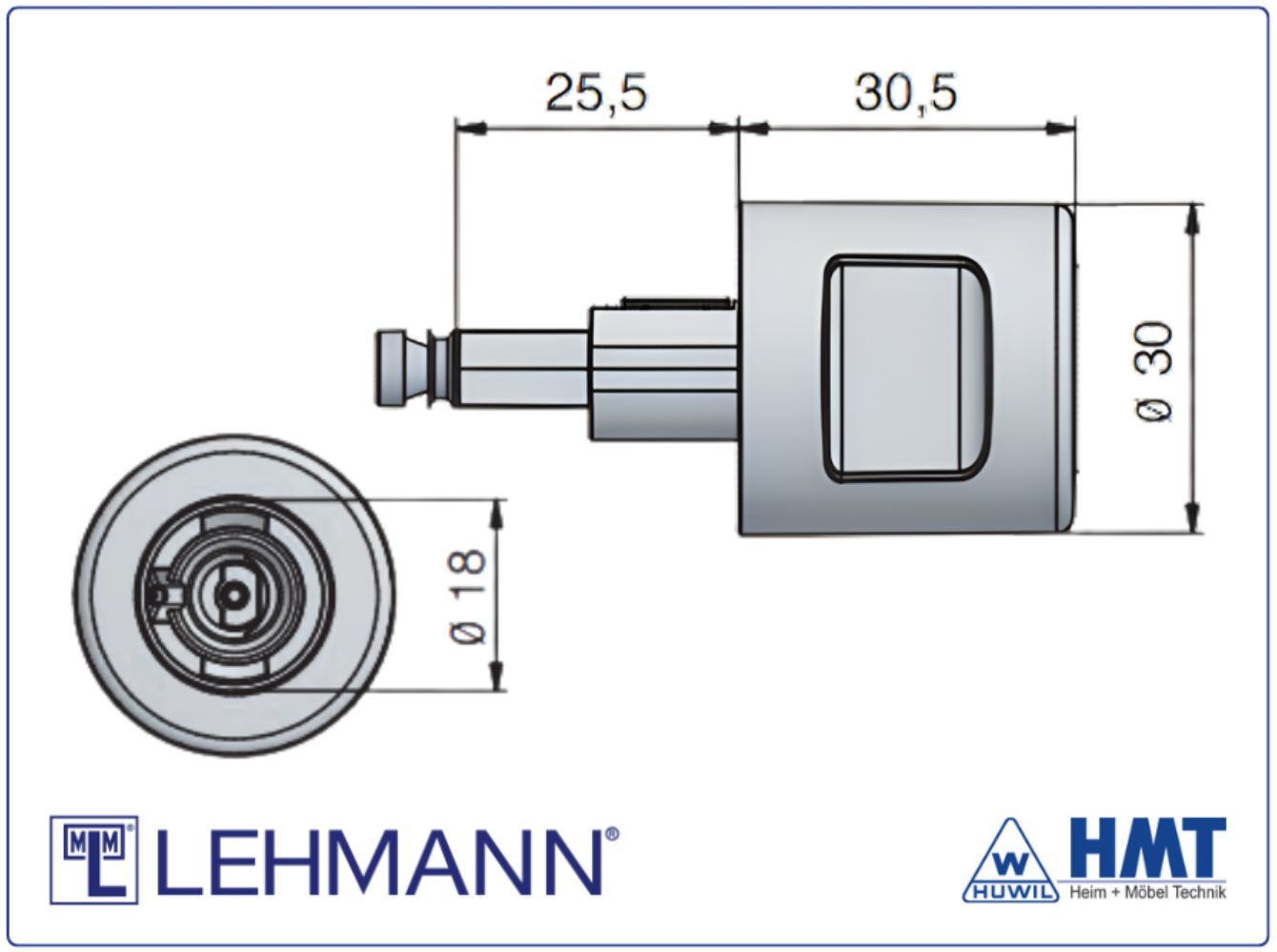

MLM LEHMANN Locking systems with added value - Made in Germany MLM LEHMANN Turn Handle Type 42.2 P2 / P4MLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mm / MLM LEHMANN Cylinder locks PRESTIGE 4 (P4) Ø16.5mmThe MLM LEHMANN TURN HANDLE TYPE 42.2 can be inserted into all furniture locks of the MLM LEHMANN locking systems P4 and/or P2.This turn knob is available for either left-hand or right-hand applications.When looking at the cabinet door from the front (from the side from which it is opened), it is considered a right-hand application if the hinges are mounted on the right side of the cabinet body and the door opens to the right – right-hand (rs). Left-hand (ls): the hinges are mounted on the left side of the cabinet body and the door opens to the left.Both a cylinder core of the PRESTIGE 2 Ø18mm locking system and a cylinder core of the PRESTIGE 4 Ø16.5mm locking system can be inserted into this turn handle.This is a matt nickel-plated plug-in turn handle / knob.The MLM LEHMANN turn handle Type 42.2 P2/P4 - ls offered here:(ls) left-hand applicationcompatible with furniture locks of the MLM P2 & MLM P4 systemsmatt nickel-platedrotation angle 90°tool-free installationdiameter 33mmlength 30.5mmrequired accessories to be ordered separately: cylinder core P4 Ø16.5mm or cylinder core P2 Ø18mm or cover cap Type 8872optional accessory to be ordered separately: removal pin (for removing the turn handle from the furniture lock)

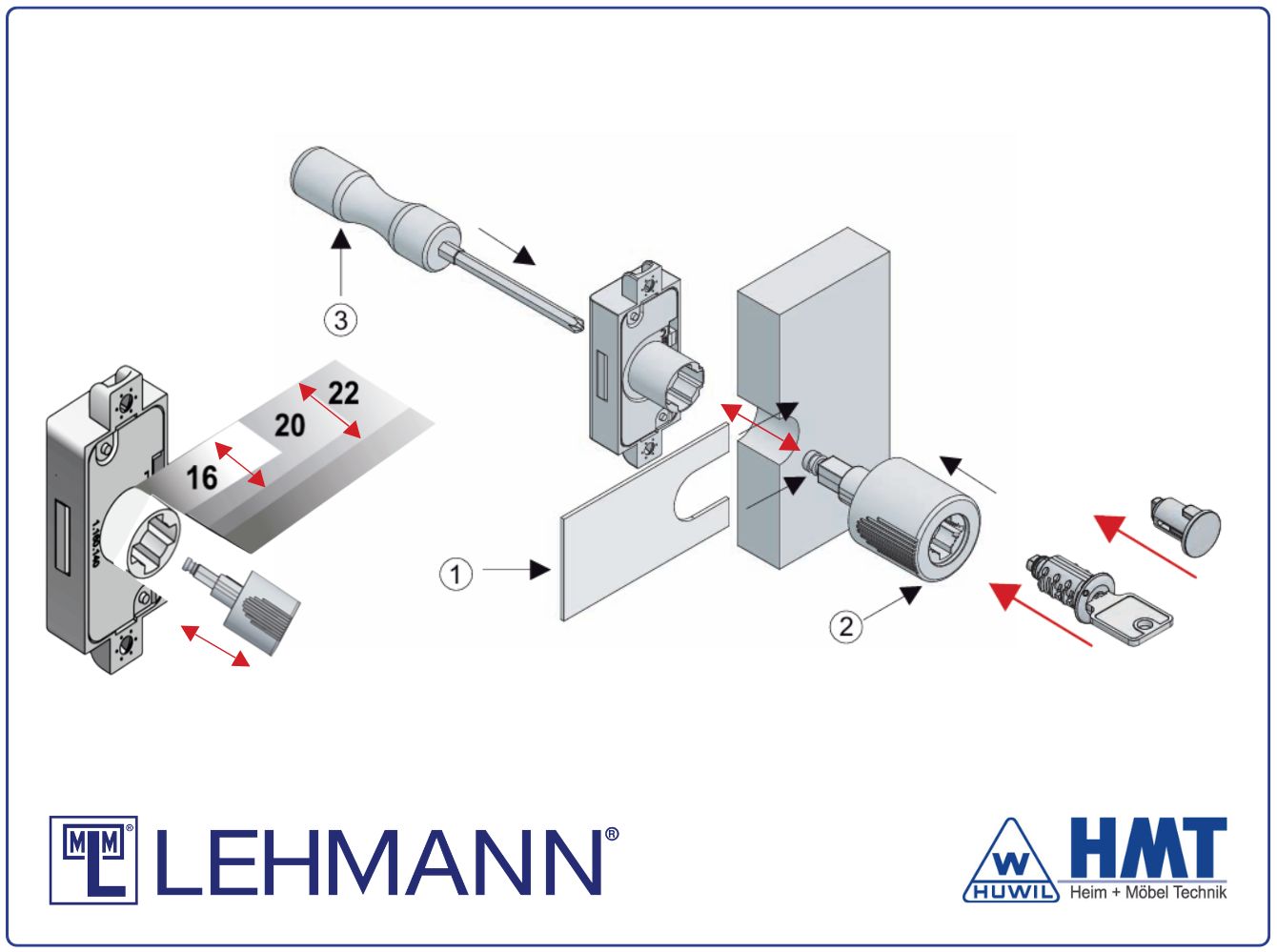

MLM LEHMANN Turn knob / Turn handle Type 42.5 P2 / P4 [VK] - ls (left) square shaft [VK] for material thickness from 16 to 22 mm without cylinder core P2 Ø18mm / without cylinder core P4 Ø16,5mm

MLM LEHMANN Locking systems with added value - Made in Germany MLM LEHMANN Turn Handle Type 42.2 P2 / P4MLM LEHMANN Cylinder locks PRESTIGE 2 (P2) Ø18mm / MLM LEHMANN Cylinder locks PRESTIGE 4 (P4) Ø16.5mmThe MLM LEHMANN TURN HANDLE TYPE 42.2 can be inserted into all furniture locks of the MLM LEHMANN locking systems P4 and/or P2.This turn knob is available for either left-hand or right-hand applications.When looking at the cabinet door from the front (from the side from which it is opened), it is considered a right-hand application if the hinges are mounted on the right side of the cabinet body and the door opens to the right – right-hand (rs). Left-hand (ls): the hinges are mounted on the left side of the cabinet body and the door opens to the left.Both a cylinder core of the PRESTIGE 2 Ø18mm locking system and a cylinder core of the PRESTIGE 4 Ø16.5mm locking system can be inserted into this turn handle.This is a matt nickel-plated plug-in turn handle / knob.The MLM LEHMANN turn handle Type 42.2 P2/P4 - rs offered here:(rs) right-hand applicationcompatible with furniture locks of the MLM P2 & MLM P4 systemsmatt nickel-platedrotation angle 90°tool-free installationdiameter 33mmlength 30.5mmrequired accessories to be ordered separately: cylinder core P4 Ø16.5mm or cylinder core P2 Ø18mm or cover cap Type 8872optional accessory to be ordered separately: removal pin (for removing the turn handle from the furniture lock)
