HEKNA LOCK 1290 Type 204 [Z1] - D35 / rs / VS
Product information "HEKNA LOCK 1290 Type 204 [Z1] - D35 / rs / VS"
| BRAND: | HEKNA |
|---|---|
| KEYING GROUP: | [SK: K-10] HEKNA / Schließungen 1001 bis 1425 / (GL) 1060 |
| PRODUCT GROUP: | Rim locks for cylinder |
| SYSTEM: | Hekna-D |
| LOCK TYPE: | Hekna Typ 204 |

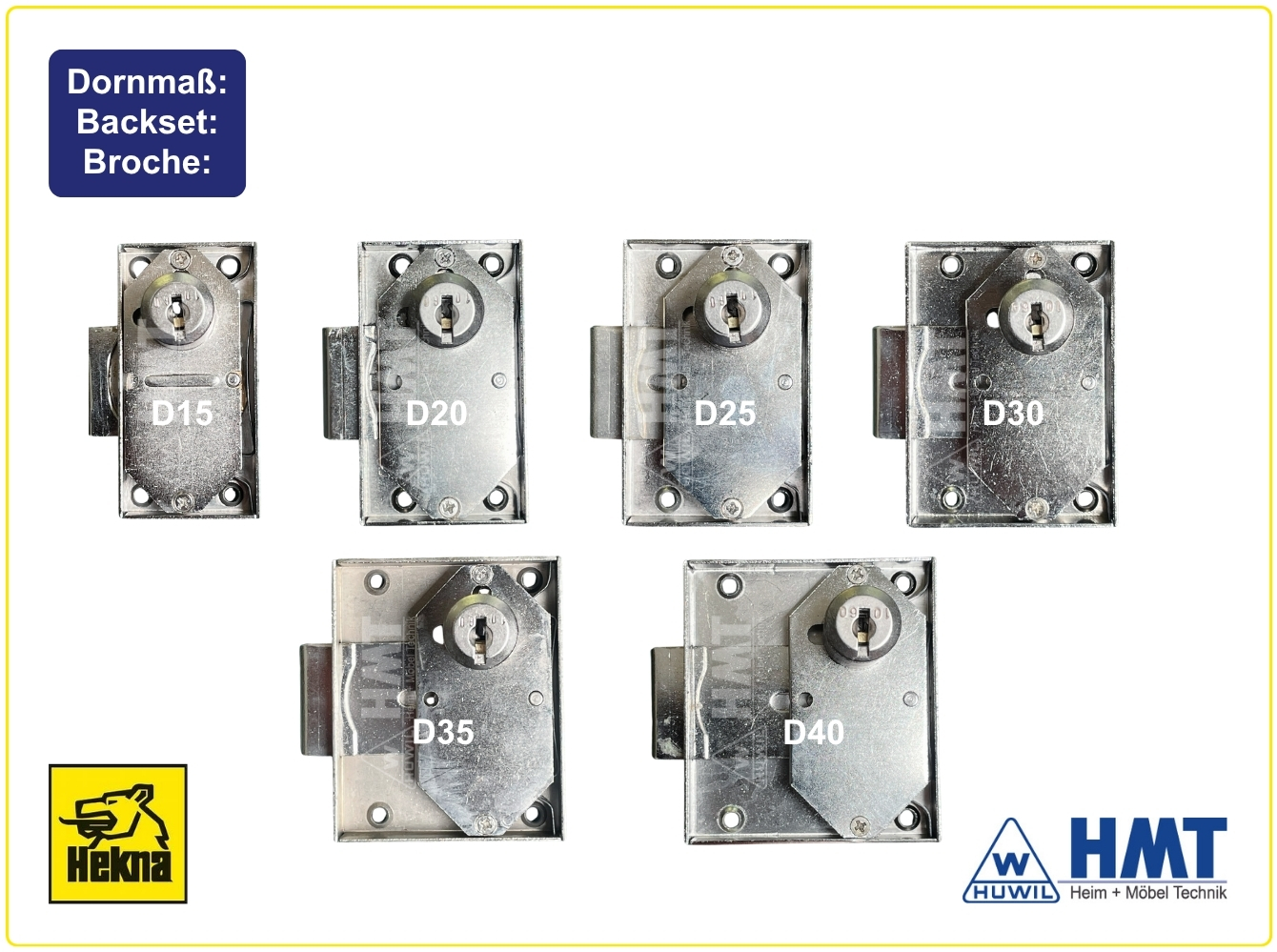

| BACKSET: | (D35) 35mm |

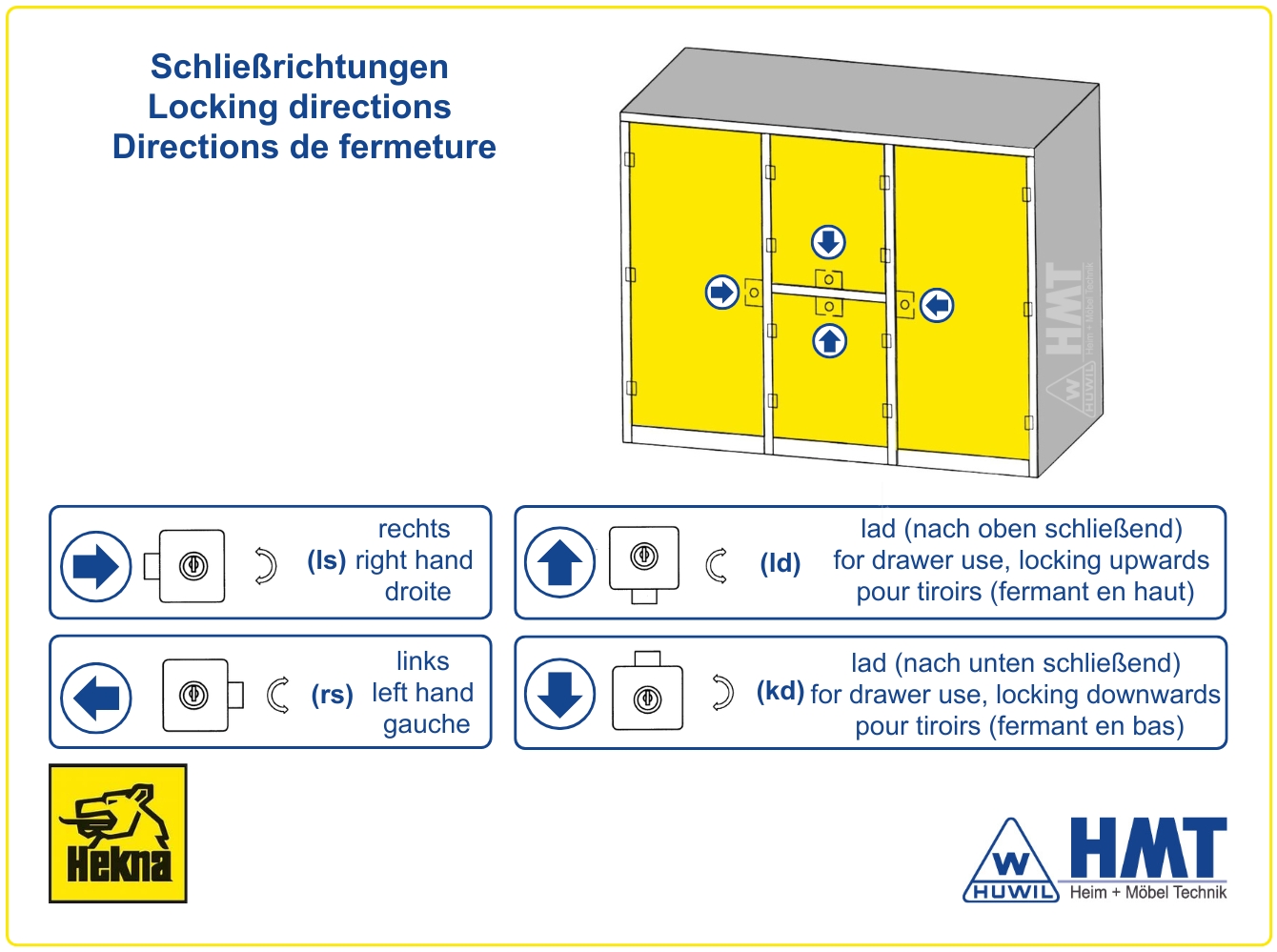

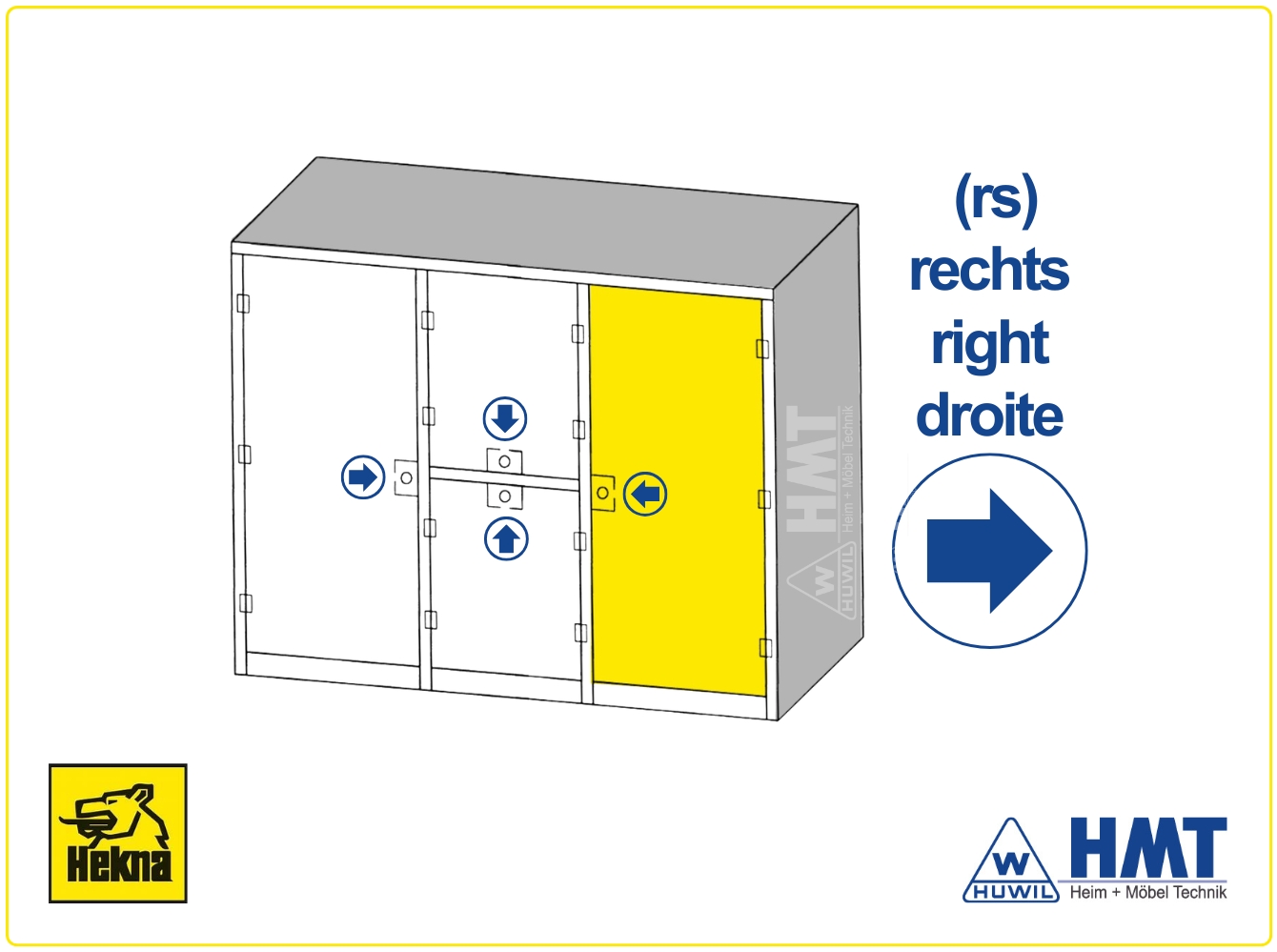

| LOCKING DIRECTION: | (rs) right |
| KEYING: | (VS) keyed different |
| DIAMETER: | Ø16,5mm |
