HEKNA LOCK 1280 Type 203 [W9] - D25 / ls / GL
Product information "HEKNA LOCK 1280 Type 203 [W9] - D25 / ls / GL"
| BRAND: | HEKNA |
|---|---|
| KEYING GROUP: | [SK: K-10] HEKNA / Schließungen 1001 bis 1425 / (GL) 1060 |

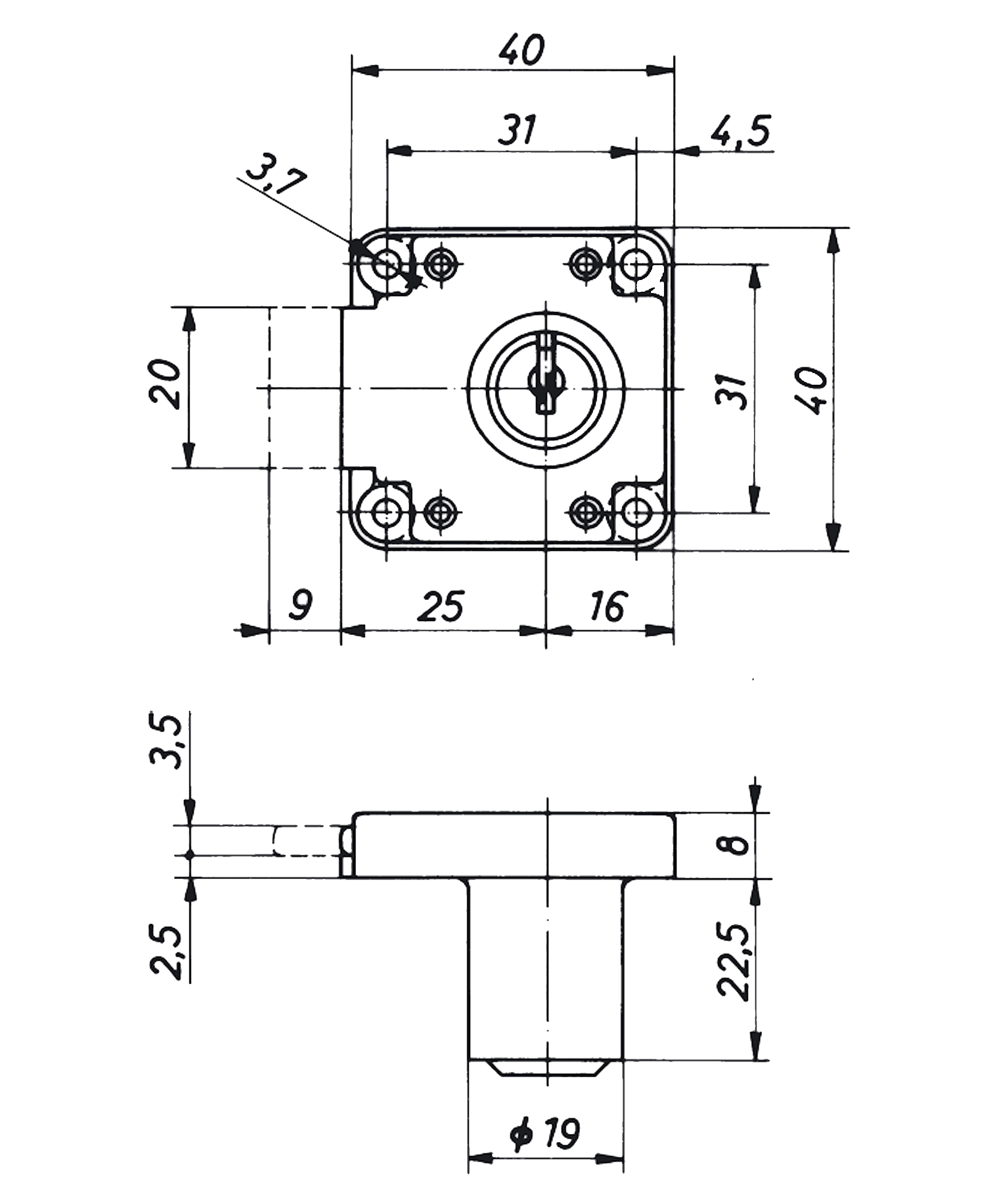

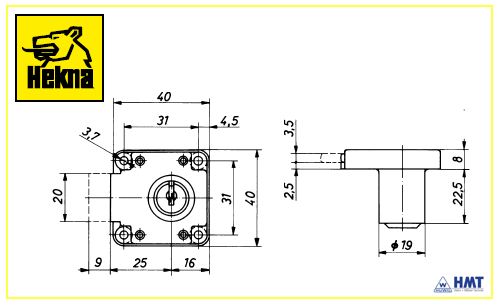

| [MS-926] ZYLINDER-MASSE: | Zylinderlänge 22,5mm , Ø 19 mm |
| PRODUCT GROUP: | Rim locks for cylinder |
| SYSTEM: | Hekna-V |
| LOCK TYPE: | Hekna Type 203 |

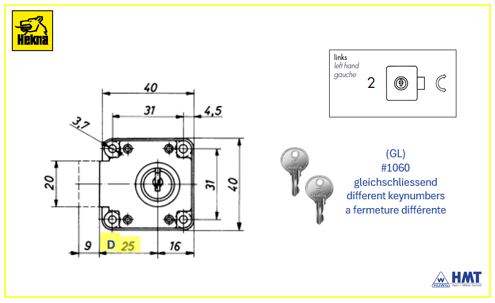

| BACKSET: | (D25) 25 mm |

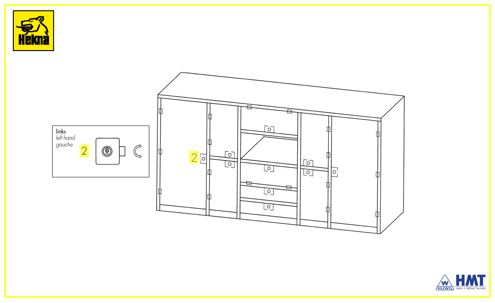

| LOCKING DIRECTION: | (ls) left |
| KEYING: | (GL) keyed alike |
| CYLINDER CORE: | Hekna ZAR - einseitiger Zylinderschlüssel / Kopf rund , with mounted cylinder core |
| FUNCTION: | 2 Abzüge , Schließbewegung 180° |
| FINISH: | nickel plated |
